Schneider Electric TeSys LRD Thermal Overload Relay 3P (0.63A–120A) – Motor Overload Protection

Schneider Electric TeSys LRD Thermal Overload Relay – Reliable Motor Protection (0.63A to 120A)

A motor is the heart of every pump, compressor and machine – and the Schneider Electric TeSys LRD thermal overload relay is the guard that keeps it alive. When the motor draws more current than its rating because of overload, a jammed shaft, low voltage or a missing phase, the bimetallic elements inside the relay heat up and trip the contactor coil before the motor winding burns. That means fewer burnt motors, less rewinding cost and less downtime.

PB SHOP BD supplies the original Schneider overload relay in Bangladesh in a complete range – from tiny 0.63–1A for small fans to 95–120A for large industrial motors. Just set the dial to your motor's nameplate full-load current and you are protected.

Key Features

• Genuine Schneider Electric TeSys LRD – world-class quality and accuracy.
• Adjustable current dial – set the exact motor full-load current within each range.
• Phase-failure (single phasing) sensitivity – trips faster when one phase is lost, the most common cause of burnt 3-phase motors in Bangladesh.
• Class 10A trip curve – suitable for standard motor starting.
• Ambient temperature compensated – stable protection from −20°C to +60°C, ideal for hot panel rooms.
• 1NO + 1NC auxiliary contacts – NC to cut the contactor coil, NO for alarm lamp or PLC signal.

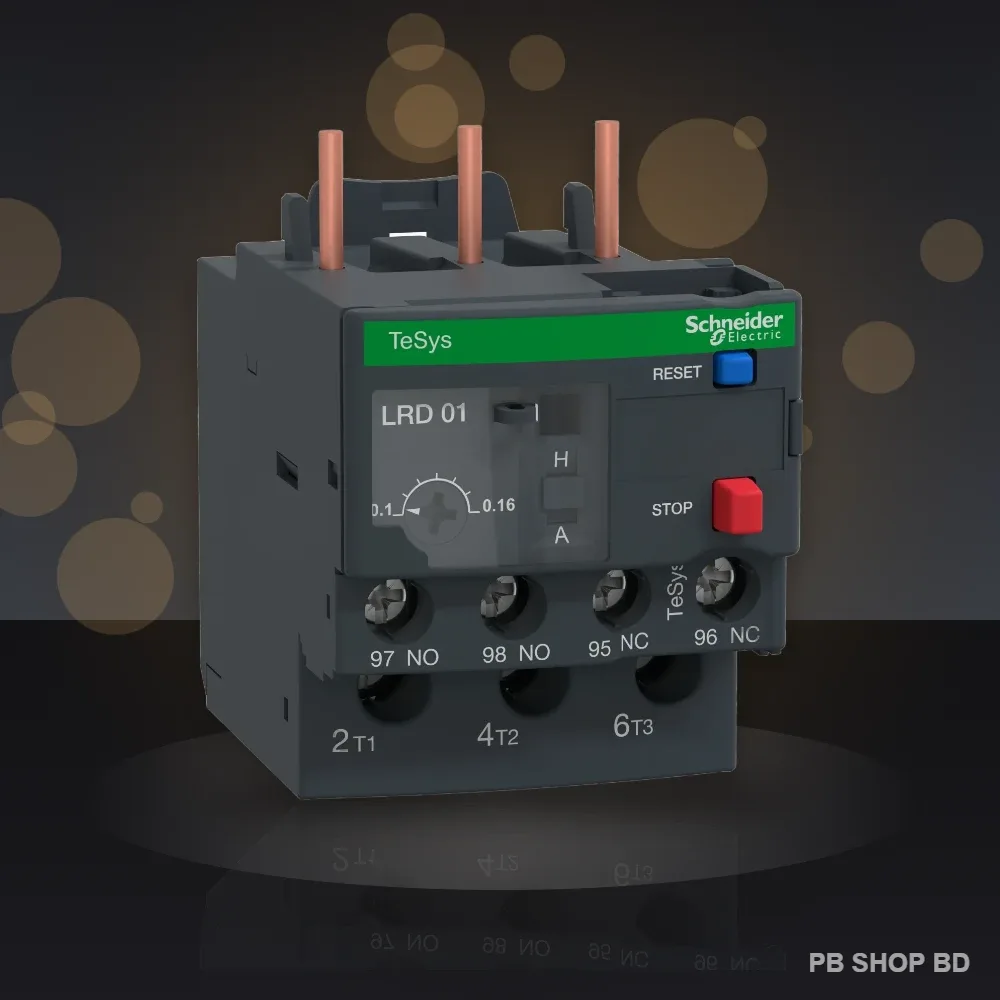

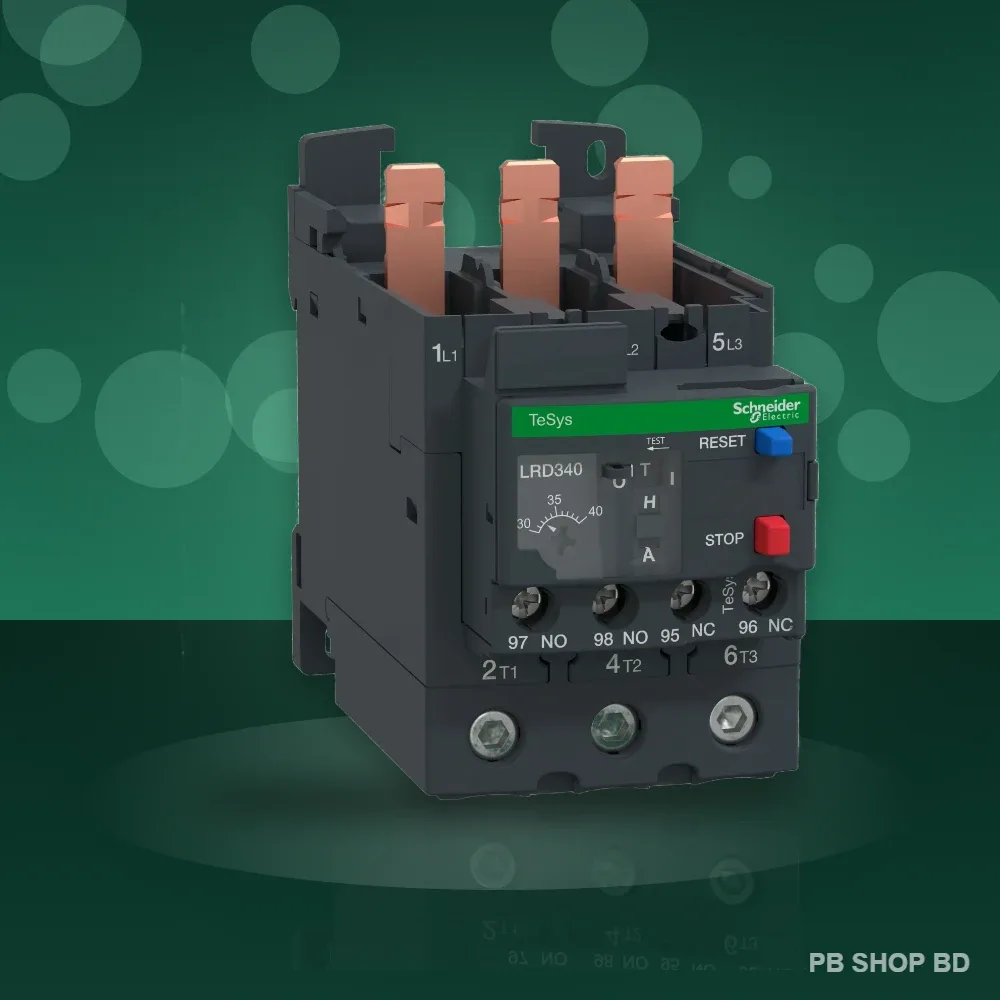

• Manual / Auto reset selector, Test and Stop buttons with trip indicator.

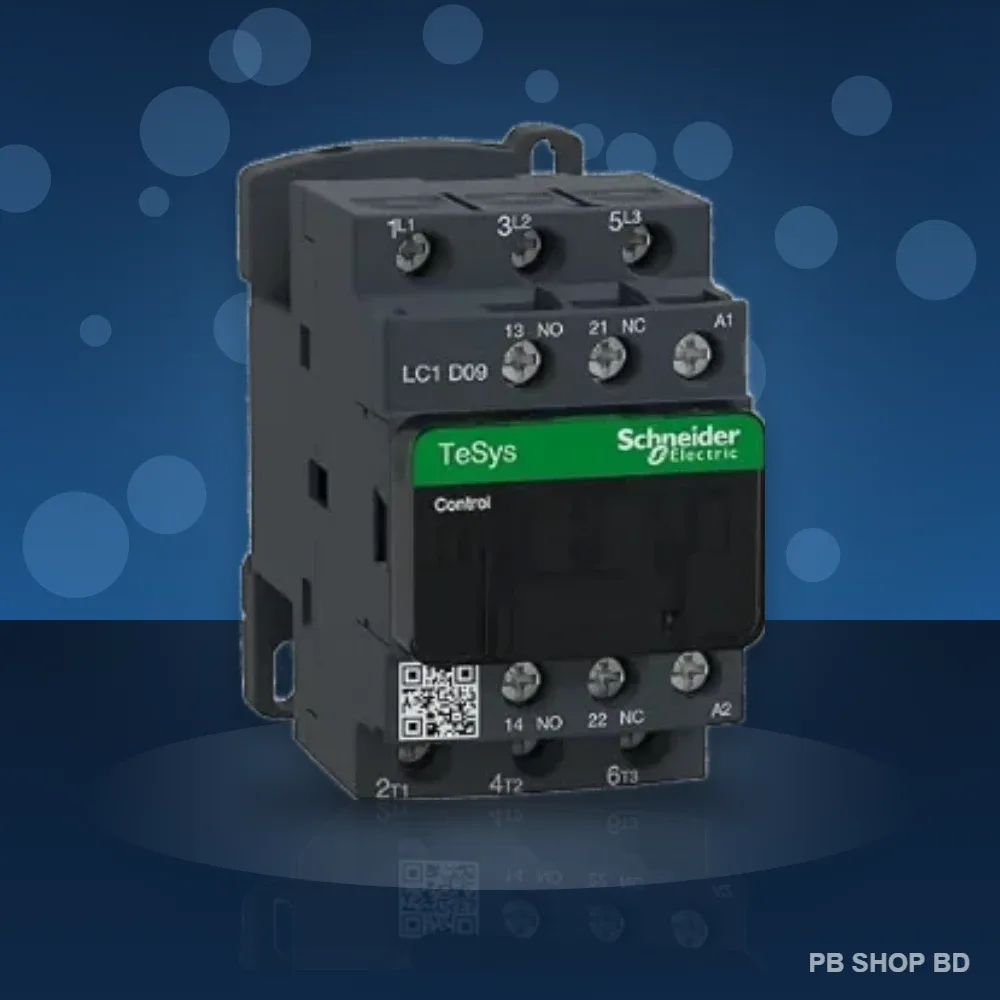

• Direct mounting under Schneider LC1D contactor – no extra wiring for the power circuit.

Overload Relay Selection Guide

Read the full-load current (FLC) on your motor nameplate and choose the range where the FLC falls near the middle. Typical 415V three-phase motors: 1HP ≈ 1.8A (LRD07), 2HP ≈ 3.2A (LRD08), 3HP ≈ 4.8A (LRD10), 5HP ≈ 7.5A (LRD12/LRD14), 7.5HP ≈ 11A (LRD16), 10HP ≈ 14A (LRD21), 15HP ≈ 21A (LRD22), 20HP ≈ 28A (LRD32), 25HP ≈ 35A (LRD35), 30HP ≈ 42A (LRD3357), 40HP ≈ 55A (LRD3359), 50HP ≈ 68A (LRD3361/63), 60–75HP (LRD4365/67). For star-delta starters, set the relay to FLC ÷ 1.73 (58%) because it sits in the phase winding circuit.

Applications

• DOL and star-delta motor starter panels
• Submersible pumps, deep tube-well and water supply pumps
• Air compressors, blowers, conveyors and mixers
• Garments, textile, rice mill, feed mill and other factory machines
• HVAC, cooling tower and chiller pumps

Why Buy from PB SHOP BD?

• 100% original Schneider Electric products
• Best Schneider overload relay price in Bangladesh
• 1 year warranty and free technical advice for selection
• Fast delivery all over Bangladesh with cash on delivery

FAQ

Q: Does the LRD relay protect against single phasing?
A: Yes. TeSys LRD relays have a differential mechanism that trips faster when one phase is missing.

Q: Which contactor does it fit?
A: LRD01–LRD35 fit LC1D09–LC1D38; LRD3xxx fits LC1D40A–LC1D65A (and LC1D80/95); LRD43xx fits LC1D115/150.

Q: What is the difference between manual and auto reset?
A: In manual mode you must press the blue reset button after a trip; in auto mode the relay resets itself after cooling. Manual is recommended for pumps and machines.

Note: Installation should be done by a qualified electrician.
