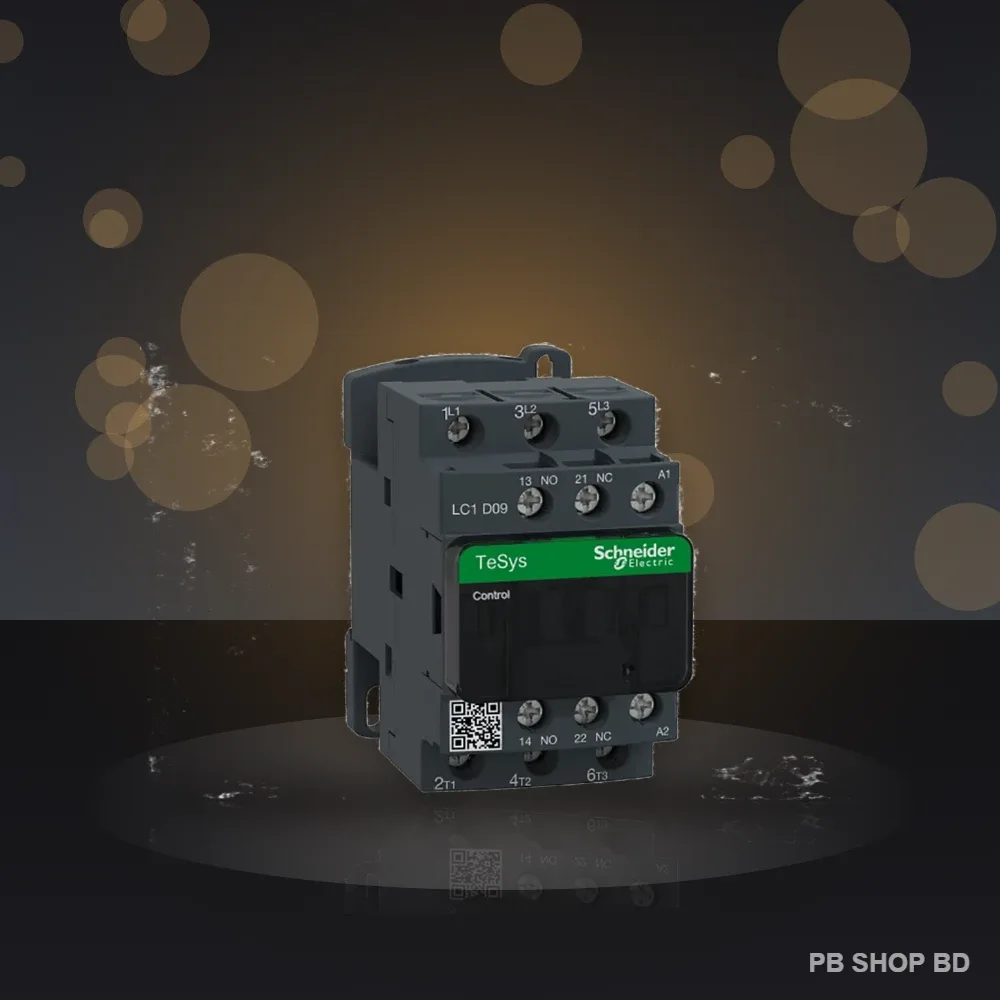

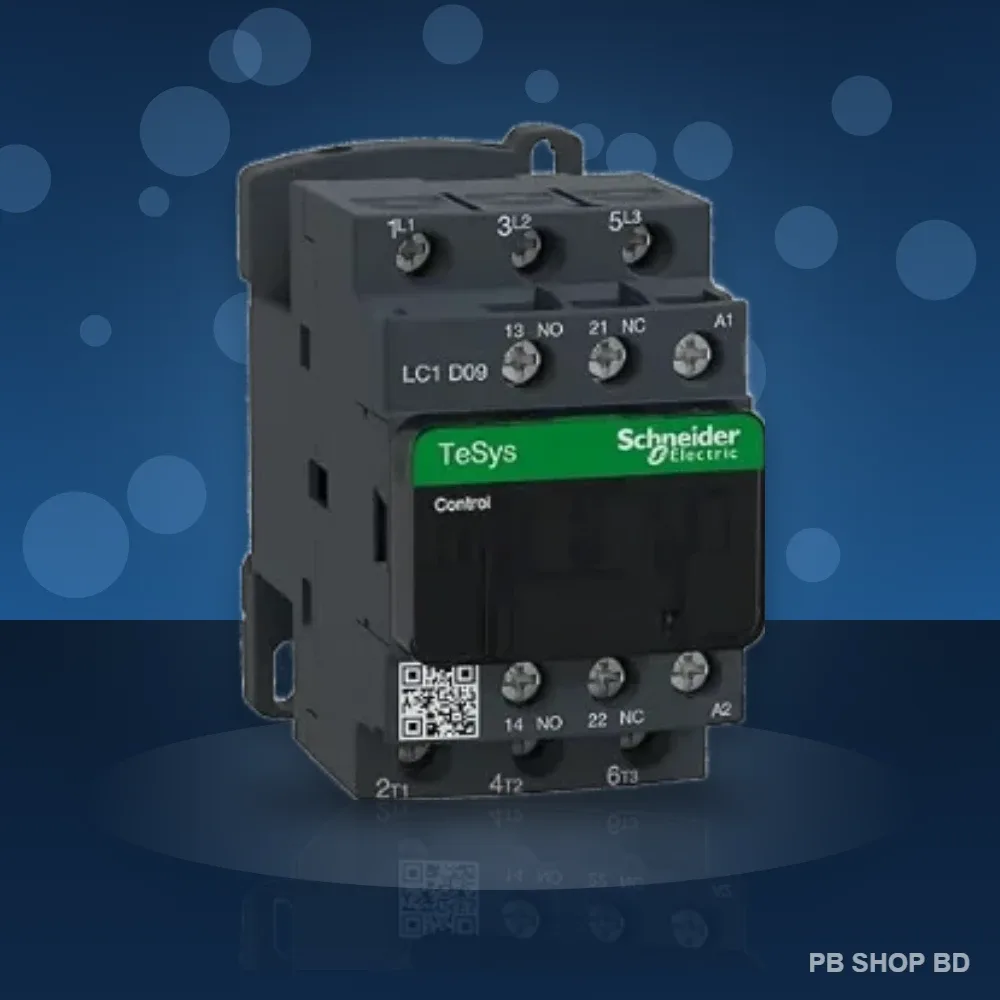

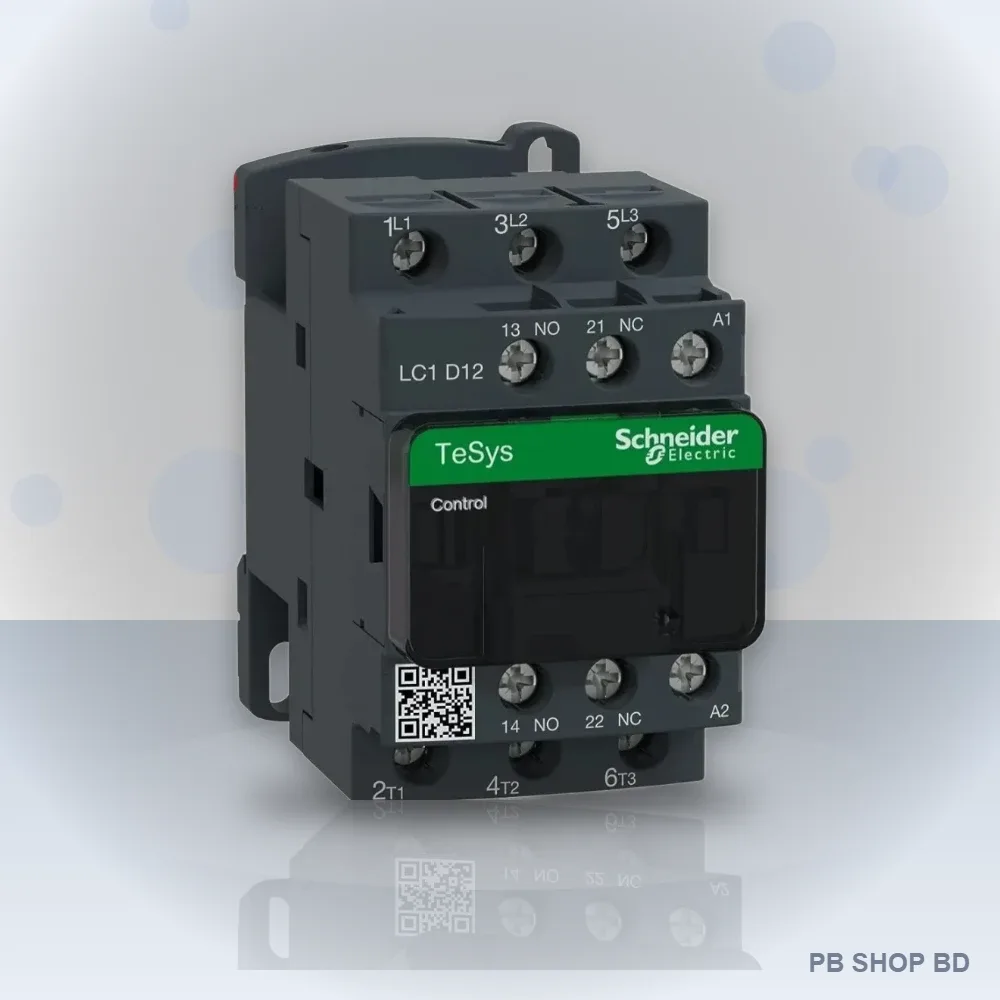

Schneider Electric TeSys LC1D Magnetic Contactor 3P – 220V AC Coil (9A to 400A)
The Schneider Electric TeSys LC1D magnetic contactor is one of the most trusted motor-control contactors in the world, and now you can buy the original Schneider contactor in Bangladesh from PB SHOP BD. This 3-pole contactor comes with a 220V AC (M7) coil, so it connects directly to the standard 220–230V control supply used in Bangladeshi panels – no extra transformer needed.
From a small 9A contactor for a single-phase pump to a heavy 400A contactor for a large industrial motor, the TeSys range gives you one reliable family for every rating. Each unit is engineered by Schneider Electric to IEC/EN 60947-4-1 for long electrical and mechanical life, quiet coil operation and safe switching of inductive loads.
Key Features of Schneider TeSys Contactor
- 100% original Schneider Electric – genuine TeSys Deca LC1D series with clear model marking.
- 220V AC coil (M7) – works on standard single-phase control voltage, 50/60Hz.
- 3 main poles (3NO) – for three-phase motors, heaters, lighting and capacitor banks.
- Built-in auxiliary contacts 1NO + 1NC – ready for self-holding (latching) and interlock wiring.
- Wide current range – 9A, 12A, 18A, 25A, 32A, 38A, 40A, 50A, 65A, 80A, 95A, 115A, 150A, 185A, 225A, 265A, 330A and 400A.
- Long life – millions of mechanical operations, silver-alloy contacts for low wear.
- Finger-safe terminals – IP20 protection on front face for safe panel work.
- Easy mounting – 35mm DIN rail clip on small frames, screw mounting on larger frames.
- Perfect match with TeSys LRD overload relay – plug the relay directly under the contactor to build a complete motor starter.
Where to Use This Magnetic Contactor
- DOL (Direct-On-Line) motor starters for water pumps, deep tube-wells and submersible pumps
- Star-delta starters for large motors in factories, garments and textile mills
- Air compressors, blowers, exhaust fans and cooling towers
- Central AC, chiller and HVAC control panels
- Lighting control, heater banks and capacitor (PFI) panels
- Generator and changeover control circuits, automation panels with PLC/timer
How to Choose the Right Contactor Rating
Choose the contactor by the motor's full-load current (AC-3). As a quick guide for 415V three-phase motors: 9A ≈ 4kW (5.5HP), 12A ≈ 5.5kW (7.5HP), 18A ≈ 7.5kW (10HP), 25A ≈ 11kW (15HP), 32A ≈ 15kW (20HP), 38A ≈ 18.5kW (25HP), 50A ≈ 22kW (30HP), 65A ≈ 30kW (40HP), 80A ≈ 37kW (50HP) and 95A ≈ 45kW (60HP). For heavier motors choose 115A–400A. If the motor starts frequently or under heavy load, pick one size higher. Always add a matching Schneider thermal overload relay for motor protection.
Why Buy Schneider Contactor from PB SHOP BD?
- Original Schneider Electric product – quality you can trust
- Competitive Schneider contactor price in Bangladesh
- 1 year warranty and expert technical support
- Fast home delivery all over Bangladesh – Dhaka, Chattogram, Gazipur, Narayanganj and more
- Cash on delivery available
Frequently Asked Questions (FAQ)
Q: What does "M7" mean in LC1D12M7?
A: M7 means the coil voltage is 220V AC, 50/60Hz – the standard control voltage in Bangladesh.
Q: Can I use this contactor for a single-phase motor?
A: Yes. Use two of the three poles (or connect poles in series) for single-phase loads.
Q: Which overload relay fits this contactor?
A: The Schneider TeSys LRD thermal overload relay mounts directly under LC1D contactors (choose the current range that matches your motor).
Q: What is the Schneider contactor price in Bangladesh?
A: The price depends on the ampere rating – select your rating above to see the latest PB SHOP BD price.
Installation note: Contactors should be installed by a qualified electrician. Switch off the main supply before wiring.
