Leader DC Solar UV Cable Model: LEADER-4RM-PV

Leader 4RM Solar Cable (4mm² DC PV Cable) – Red / Black – Per Meter

Name: Leader 4RM Solar Cable (4mm² DC PV Cable) – Red / Black – Per Meter
Brand: Leader
SKU: LEADER-4RM-PV
Price: 120 BDT
Availability: InStock

৳120 Price range ৳120 – ৳240 depending on option

● In Stock 🚚 Delivery in 1–3 days 💵 Cash on Delivery

⚡ Important Functions

4mm² (4RM) tinned copper solar DC cable – Leader brand
Rated 1000/1800V DC – for solar panel to inverter/charge controller
Up to 55A current capacity, low resistance (≤4.75 Ω/km)
UV, ozone, water & flame resistant XLPO insulation
Temperature range −40°C to +120°C – long outdoor life on rooftops
Red, Black or Both (Red + Black pair) – sold per meter

🛡️

1 Month Replacement Warranty Replacement for manufacturing defects within 1 month of delivery. Physical damage, burn marks, water damage or wrong wiring are not covered. Keep your invoice. Read warranty terms & conditions →

Choose option:

Red Black Both (Red + Black)

Order on WhatsApp 📞 Call +8809658473941

🚚 Inside Dhaka৳60 · 1–2 days

🚚 Outside Dhaka৳110 · 2–3 days

🔁 Easy Return3-day return for wrong / defective item policy

✅ 100% OriginalGenuine product, tested before dispatch

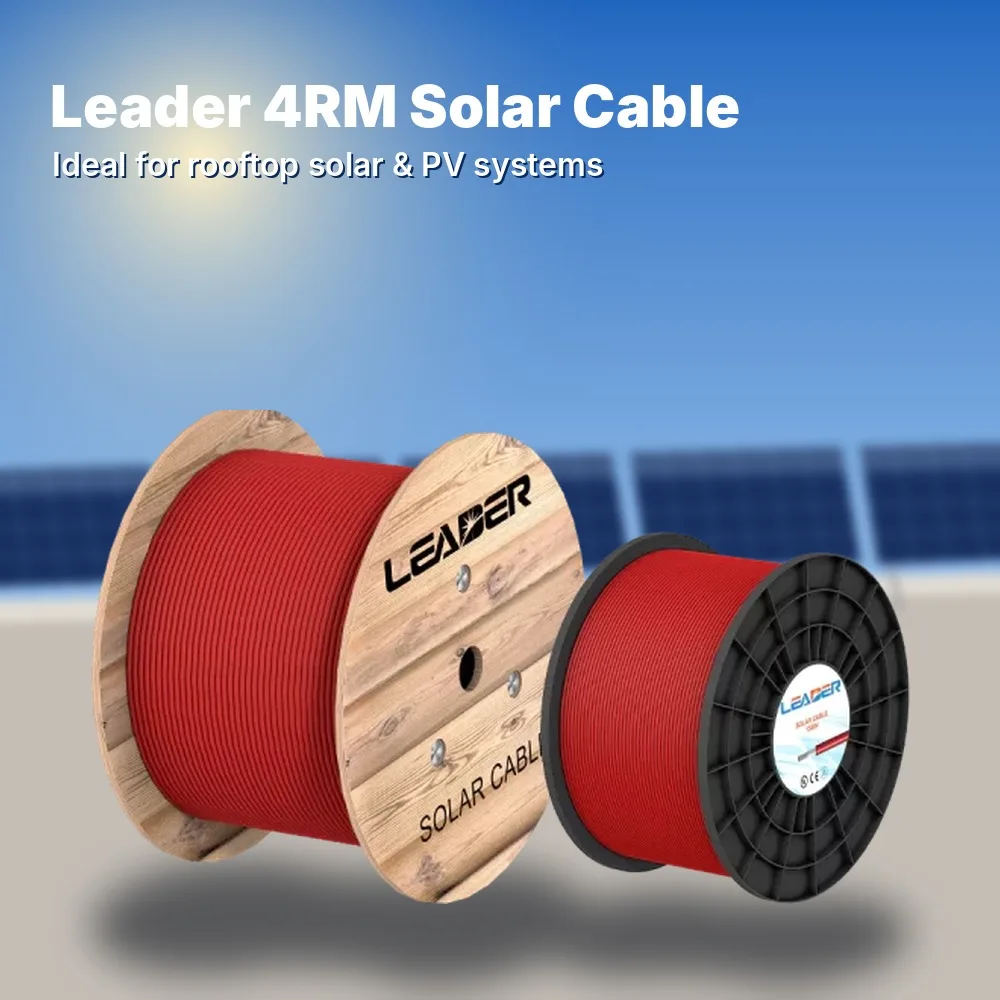

Leader 4RM Solar Cable – 4mm² DC PV Cable for Solar Systems

Leader 4RM Solar Cable is a high-quality 4mm² (4 RM) photovoltaic DC cable made for connecting solar panels to inverters, solar charge controllers, combiner boxes and batteries. It uses a flexible Class 5 tinned copper conductor and UV-resistant XLPO cross-linked insulation, so it stays safe and efficient for many years under the hot sun, rain and humid weather of Bangladesh.

Price Per Meter

1 to 10 meter: ৳130 per meter
11 to 100 meter: ৳125 per meter
101 meter or more: ৳120 per meter

Colour options: Red, Black, or Both. If you choose Both (Red + Black), you get 1 meter Red + 1 meter Black for each meter you order, so the price is double. Red is normally used for positive (+) and Black for negative (–) connections.

Key Features

4mm² tinned copper conductor – corrosion resistant, low power loss
Rated voltage 1000/1800V DC – suitable for home and commercial solar systems
Current carrying capacity up to 55A
Double insulated, UV, ozone and water resistant – ideal for rooftop installation
Flame retardant and halogen-free, low smoke
Works from -40°C to +120°C
Highly flexible and easy to route; compatible with MC4 and all major solar connectors

Applications

Solar panel to solar inverter / hybrid inverter connection
Solar panel to MPPT / PWM charge controller
Solar irrigation pump and VFD solar pump systems
Rooftop, on-grid, off-grid and net-metering solar projects
DC combiner box and string wiring

Why Choose 4mm Solar Cable?

4mm² is the most popular size for residential and small commercial solar installations. It keeps voltage drop low for typical panel strings and is the standard size used with MC4 connectors. Using a proper solar DC cable instead of ordinary house wire protects your system from UV damage, overheating and power loss.

লিডার ৪ আরএম সোলার ক্যাবল

লিডার ৪মিমি (4RM) সোলার ডিসি ক্যাবল – টিনড কপার কন্ডাক্টর, ১৮০০ভি ডিসি রেটেড, রোদ-বৃষ্টি সহনশীল (UV রেজিস্ট্যান্ট)। সোলার প্যানেল থেকে ইনভার্টার, চার্জ কন্ট্রোলার ও সোলার পাম্পে সংযোগের জন্য উপযুক্ত। লাল, কালো অথবা দুটো একসাথে (জোড়া) পাওয়া যায়। মিটার হিসেবে বিক্রি হয় – সারা বাংলাদেশে হোম ডেলিভারি।

Order now from PB Shop BD – genuine Leader solar cable at the best price in Bangladesh with fast delivery.

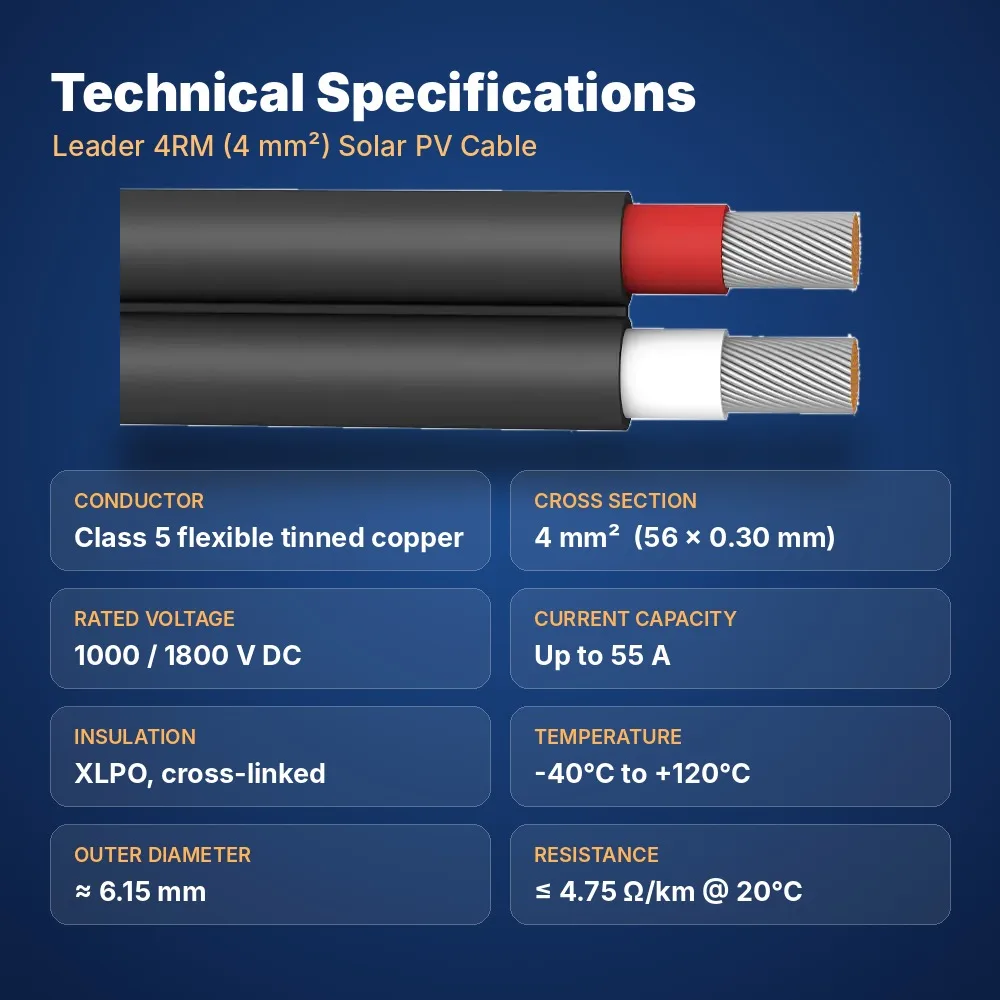

LEADER-4RM-PV Specifications

Brand	Leader
Model	4RM Solar PV Cable
Cross Section	4 mm² (12 AWG)
Conductor	Class 5 flexible tinned copper (56 × 0.30 mm)
Conductor Diameter	approx. 2.58 mm
Outer Diameter	approx. 6.15 mm
Rated Voltage	1000/1800V DC (600/1000V AC)
Test Voltage	6500V, 50Hz, 10 min
Current Carrying Capacity	up to 55A
Conductor Resistance	≤ 4.75 Ω/km at 20°C
Insulation & Sheath	XLPO (electron-beam cross-linked polyolefin), halogen free
Temperature Range	-40°C to +120°C
Fire Performance	Flame retardant (IEC 60332-1)
Water Resistance	AD7
Minimum Bend Radius	5 × cable diameter
Colour	Red / Black
Unit	Per meter
