19% OFF @PEN OPU4-A40 2P AC Surge Protective Device (SPD) 40kA 275V
@PEN (OPEN) SPD Model: OPU4-A40

@PEN OPU4-A40 2P AC Surge Protective Device (SPD) 40kA 275V

৳1,050 ৳1,300 Save ৳250
● In Stock 🚚 Delivery in 1–3 days 💵 Cash on Delivery

⚡ Important Functions

  • Imax 40kA (8/20µs) - strong lightning & surge protection
  • Type 2 (T2), 2-pole L-N, Uc 275V AC
  • Fast response, protection level Up ≤ 1.3kV
  • Green 'OK' indicator window
  • IEC 61643-11 standard
  • 35mm DIN rail mounting
🛡️
1 Month Replacement Warranty Replacement for manufacturing defects within 1 month of delivery. Physical damage, burn marks, water damage or wrong wiring are not covered. Keep your invoice. Read warranty terms & conditions →
Order on WhatsApp 📞 Call +8809658473941
🚚 Inside Dhaka৳60 · 1–2 days
🚚 Outside Dhaka৳110 · 2–3 days
🔁 Easy Return3-day return for wrong / defective item policy
✅ 100% OriginalGenuine product, tested before dispatch

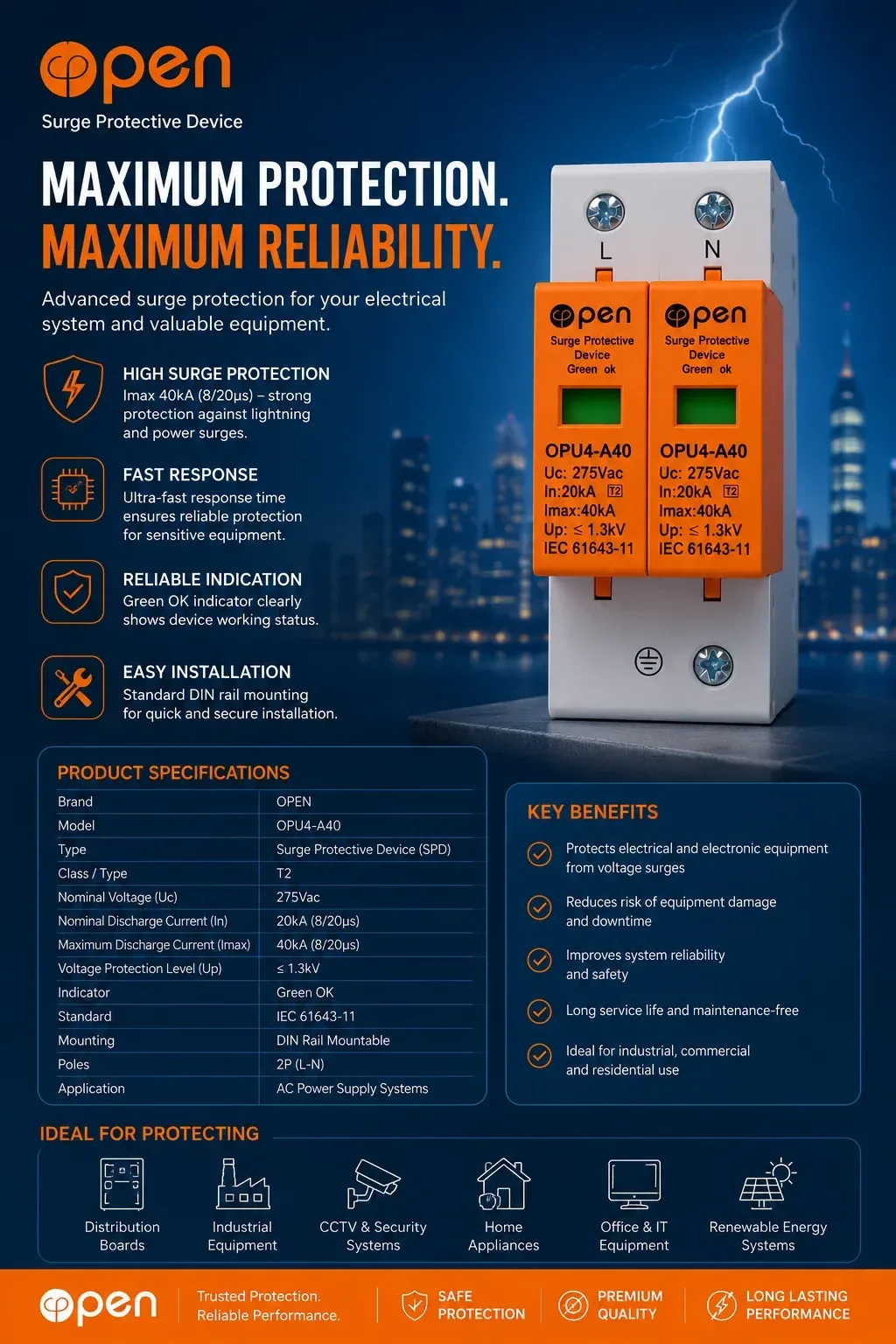

@PEN OPU4-A40 2P AC Surge Protective Device (SPD) 40kA 275V

Thunderstorms and grid switching create very short, very high voltage spikes that can burn TVs, inverters, routers and other electronics in a second. The @PEN OPU4-A40 is fitted next to the main breaker and connected to earth. When a spike comes, it diverts the extra energy to earth almost instantly.

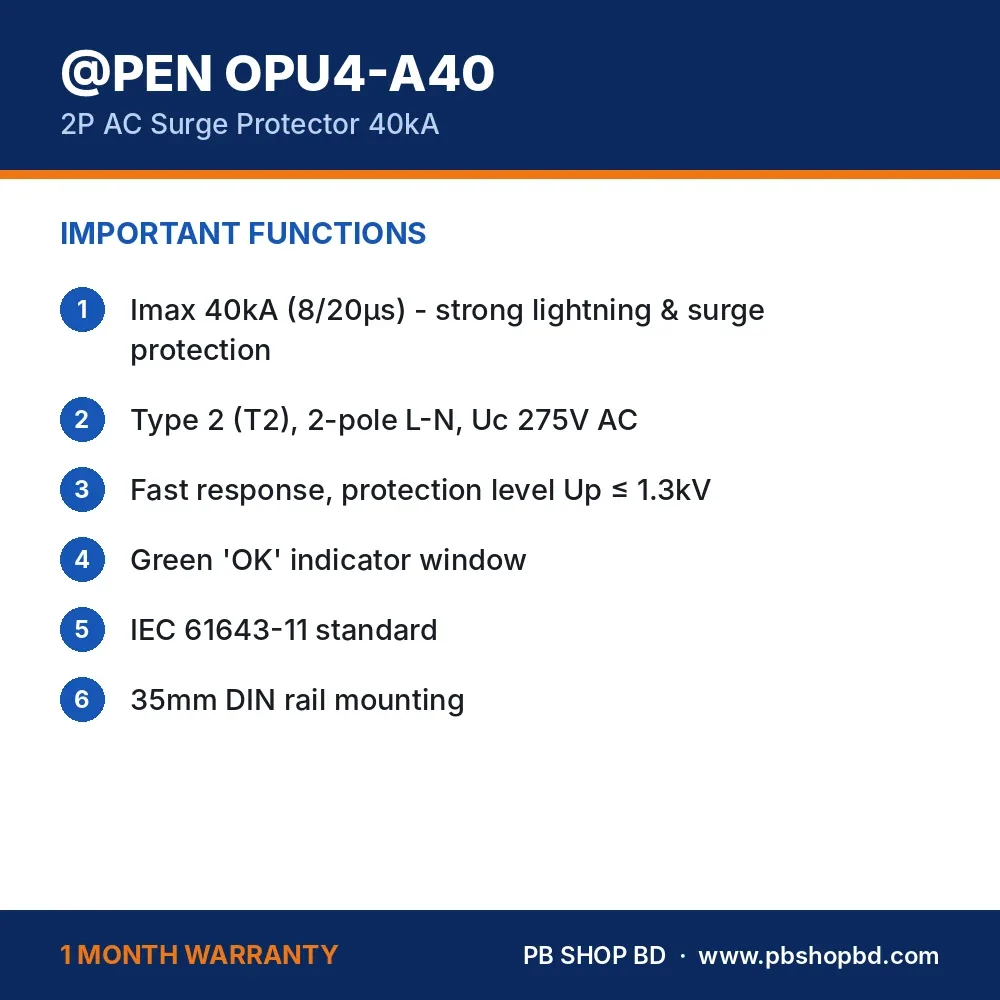

@PEN OPU4-A40 2P AC SPD 40kA – important functions and 1 month warranty

Important functions

  • Imax 40kA (8/20µs) - strong lightning & surge protection
  • Type 2 (T2), 2-pole L-N, Uc 275V AC
  • Fast response, protection level Up ≤ 1.3kV
  • Green 'OK' indicator window
  • IEC 61643-11 standard
  • 35mm DIN rail mounting

Easy status check

A green window on each module shows it is working. A good earth connection is required for the SPD to protect your appliances.

Suitable for

  • Home & office distribution board
  • CCTV, IT & network equipment
  • TV, fridge, AC & home appliances
  • Solar system & IPS (AC side)

@PEN OPU4-A40 2P AC SPD 40kA – specifications

What's in the box

  • 1 × @PEN OPU4-A40 2P AC Surge Protective Device

Frequently Asked Questions

Do I need an earth connection?
Yes. The SPD sends surges to earth, so a good earth connection is required.

How do I know it is still working?
The indicator window is green when the module is OK.

Buy @PEN OPU4-A40 2P AC SPD 40kA in Bangladesh

Order the original @PEN OPU4-A40 2P AC SPD 40kA from PB SHOP BD with cash on delivery all over Bangladesh, fast delivery inside Dhaka and a 1-month replacement warranty (manufacturing fault only – not for burn, water or physical damage). Call or WhatsApp us for expert advice before you buy.

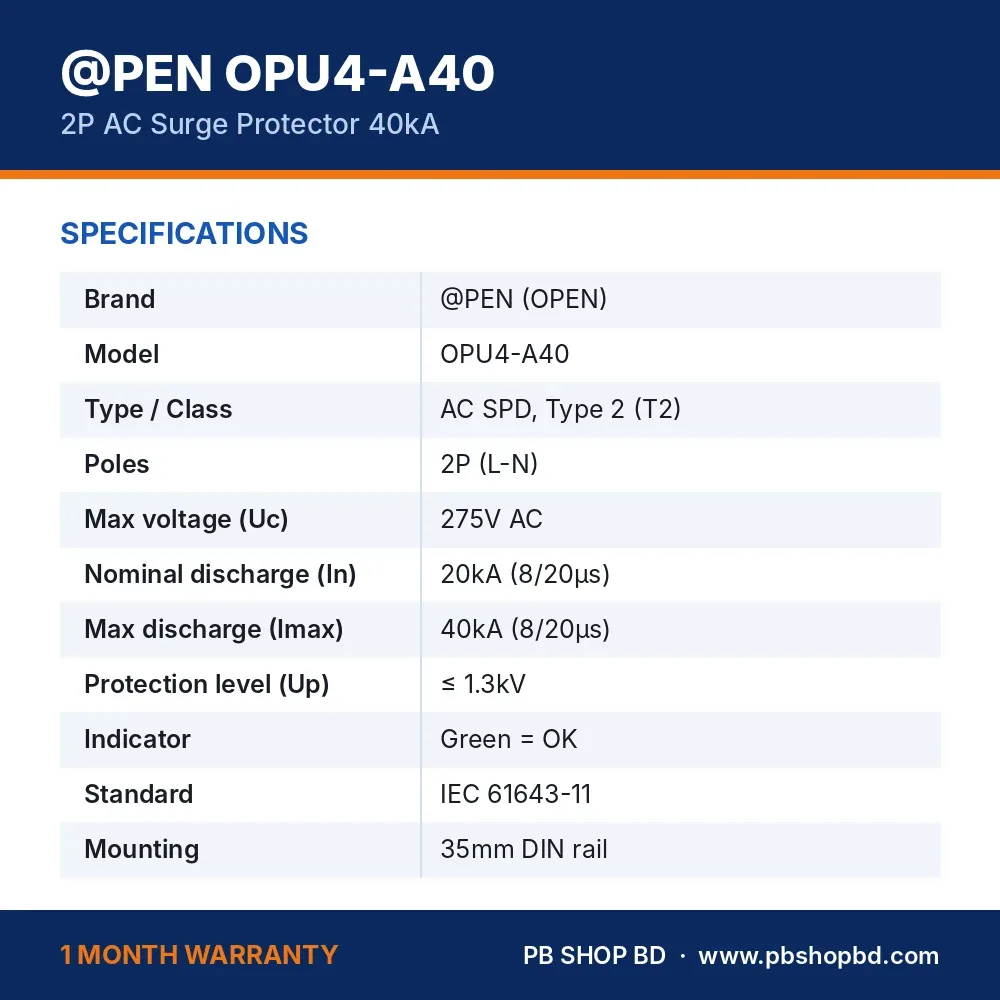

OPU4-A40 Specifications

Brand@PEN (OPEN)
ModelOPU4-A40
Type / ClassAC SPD, Type 2 (T2)
Poles2P (L-N)
Max voltage (Uc)275V AC
Nominal discharge (In)20kA (8/20µs)
Max discharge (Imax)40kA (8/20µs)
Protection level (Up)≤ 1.3kV
IndicatorGreen = OK
StandardIEC 61643-11
Mounting35mm DIN rail

1 Month Replacement Warranty

  • Free replacement if the product has a manufacturing defect within 1 month from the delivery date.
  • The product must be returned with its box, accessories and invoice / order number.
  • Not covered: physical damage, broken casing, burn marks, water/moisture damage, lightning or very high voltage, wrong wiring or installation, and tampering.
  • Please have electrical products installed by a qualified electrician.
  • Wrong or damaged item on delivery? Tell us within 3 days for a free exchange.
