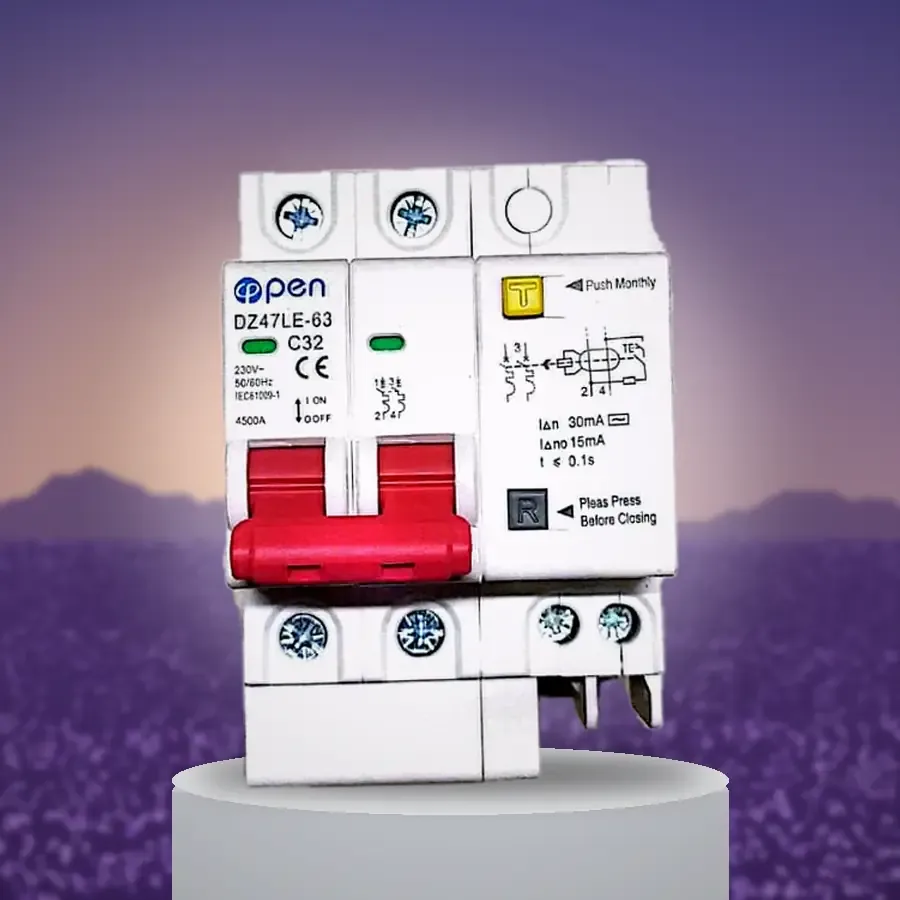

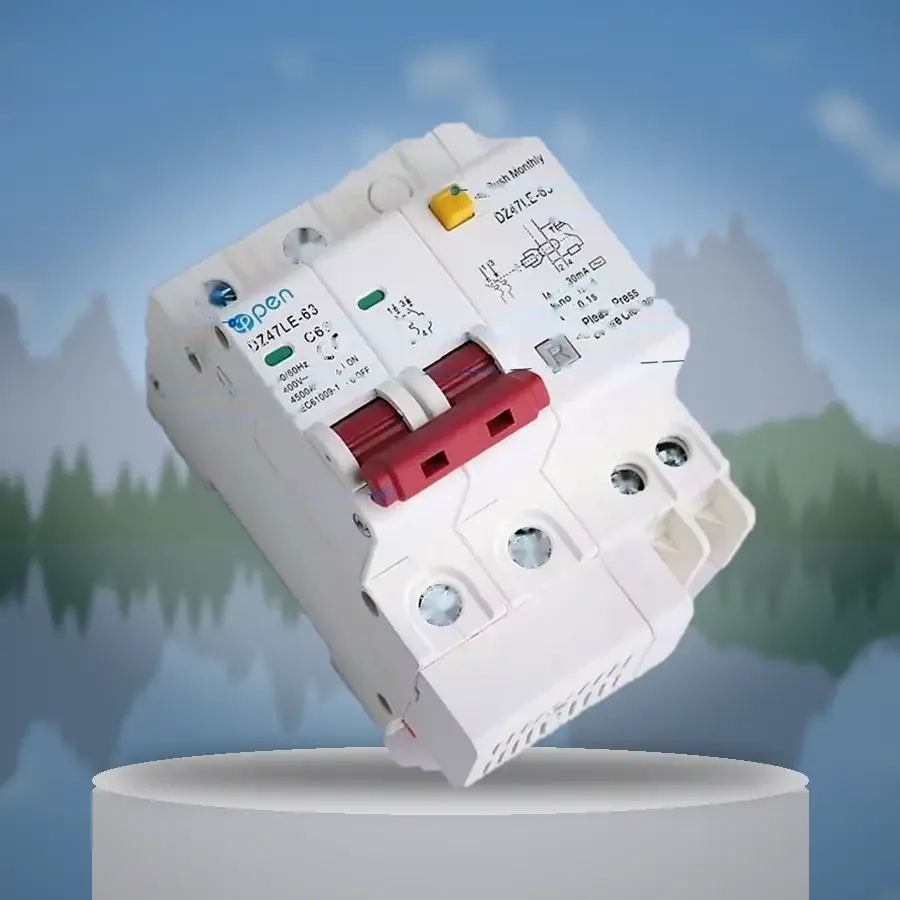

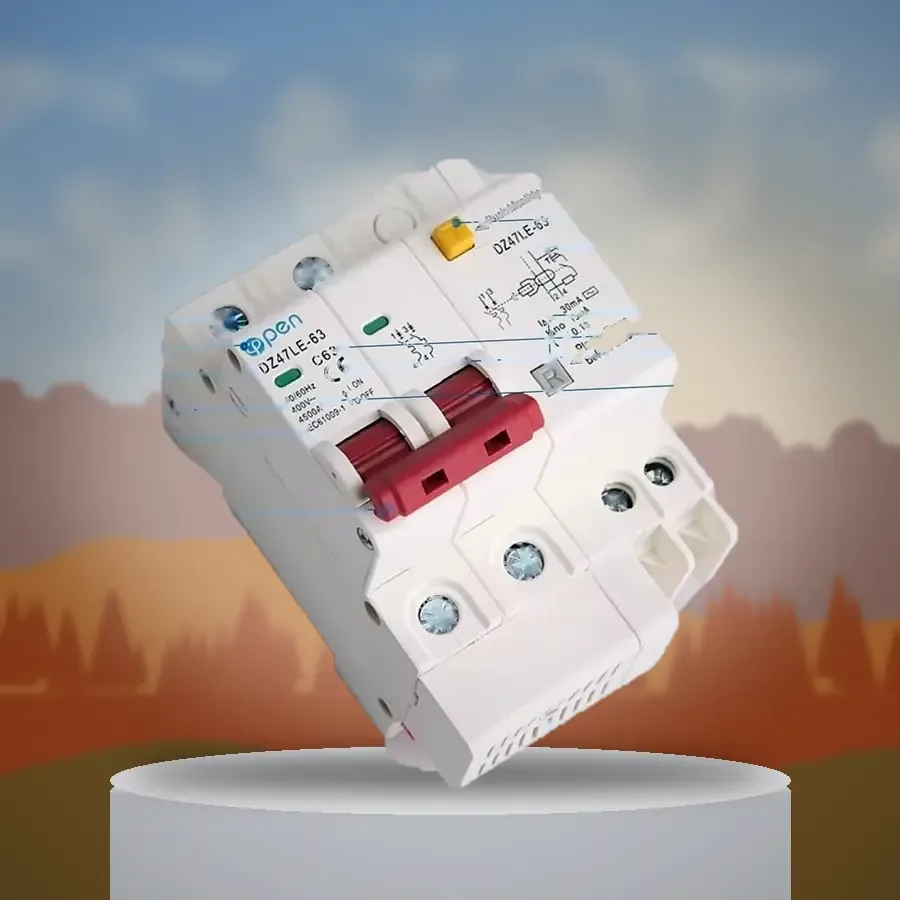

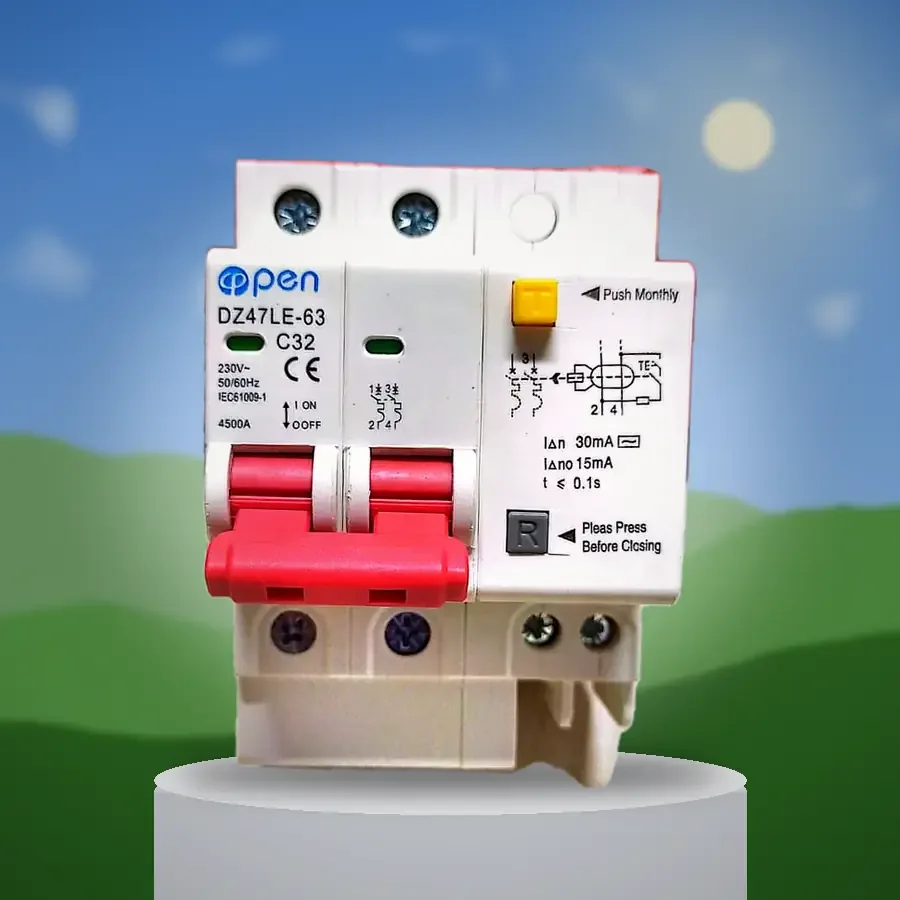

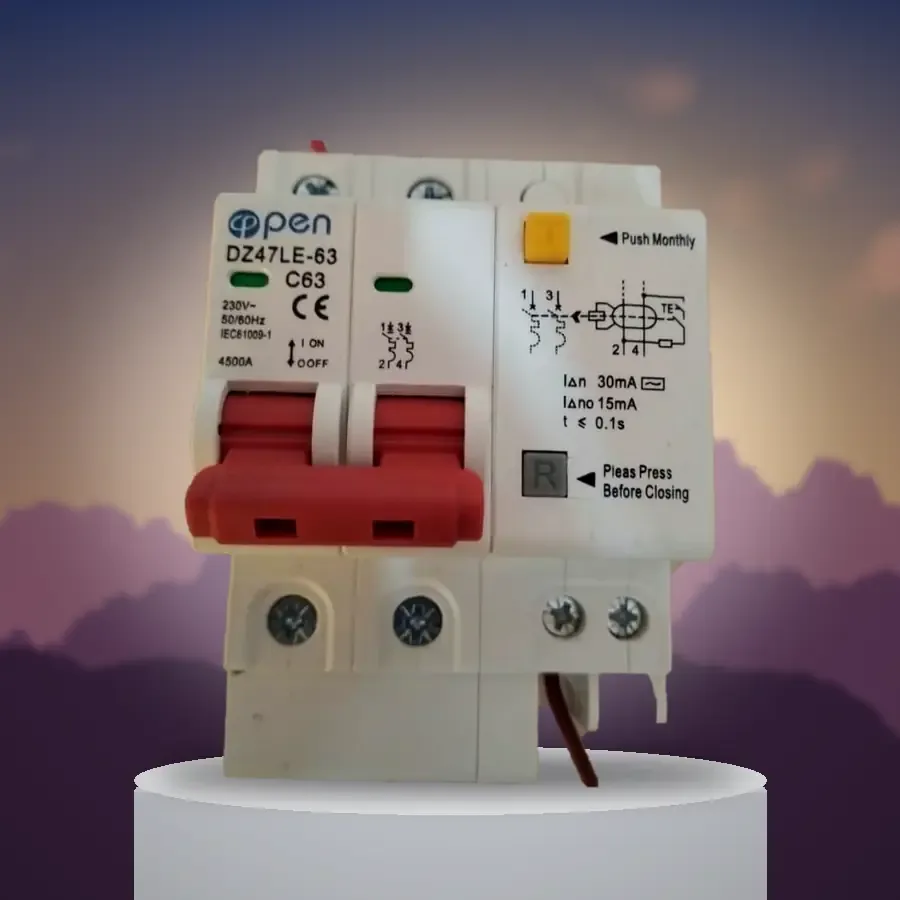

@PEN DZ47LE-63 RCBO – 2P Residual Current Circuit Breaker with Overload Protection (32A / 63A, 30mA)
The @PEN DZ47LE-63 RCBO is a reliable 2-pole (1P+N) electrical safety device that gives overload, short-circuit and earth-leakage protection in a single unit. Because it combines an MCB and an RCCB in one compact module, you do not need two separate devices – saving space in the distribution board and lowering total cost. Designed for 230V single-phase lines, it keeps your wiring, appliances and family safe from electric shock and electrical fire.
With a sensitive 30mA leakage trip that operates in 0.1 second or less, a 4500A (4.5kA) breaking capacity and compliance with IEC 61009-1, this RCBO is an excellent budget-friendly protection solution for homes, flats, shops, offices and small commercial installations in Bangladesh.
Key Features
- 3-in-1 protection – overload, short circuit and residual current (earth leakage) protection.
- 30mA sensitivity – rated residual operating current IΔn 30mA, non-operating current IΔno 15mA, trip time ≤ 0.1s for personal shock protection.
- Two current ratings – choose 32A or 63A (C-curve) to suit your load.
- High breaking capacity – 4500A (4.5kA) for safe short-circuit interruption.
- Test button (T) – yellow test button to check the leakage function; press it once a month.
- Reset button (R) – press before closing the breaker after a leakage trip.
- Clear ON/OFF indication – window indicator and wide red handle for easy operation.
- DIN-rail mounting – standard 35mm DIN rail, quick and easy installation in any distribution box.
- Standard & certification – manufactured to IEC 61009-1, CE marked, 230V~ 50/60Hz.
Technical Specifications
- Brand: @PEN
- Model: DZ47LE-63
- Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
- Rated Current: 32A / 63A
- Poles: 2P (1P+N), single phase
- Rated Voltage: 230V AC, 50/60Hz
- Residual Operating Current (IΔn): 30mA
- Residual Non-Operating Current (IΔno): 15mA
- Trip Time: ≤ 0.1s
- Tripping Curve: C
- Breaking Capacity: 4500A (4.5kA)
- Standard: IEC 61009-1, CE
- Mounting: 35mm DIN rail
- Warranty: 1 Month Replacement Warranty
Applications
- Homes and apartments – main or sub-circuit protection
- Shops, showrooms and offices
- Small commercial and industrial single-phase installations
- Water heaters, pumps, kitchen and bathroom circuits where earth-leakage risk is high
Why Choose the @PEN DZ47LE-63 RCBO?
A standard MCB only protects against overload and short circuit – it cannot detect current leaking to earth through a person or damaged insulation. The DZ47LE-63 RCBO adds 30mA leakage protection in the same housing, so it disconnects the supply instantly when dangerous leakage is detected. It is a good-quality, cost-effective upgrade for any distribution board.
Price in Bangladesh
The latest price of the @PEN DZ47LE-63 RCBO (32A / 63A, 30mA) in Bangladesh is ৳1,099 at PB SHOP BD. Order online for fast delivery across Bangladesh, backed by a 1 Month Replacement Warranty.
Note: Installation should be done by a qualified electrician. Press the test button monthly to make sure leakage protection is working.
