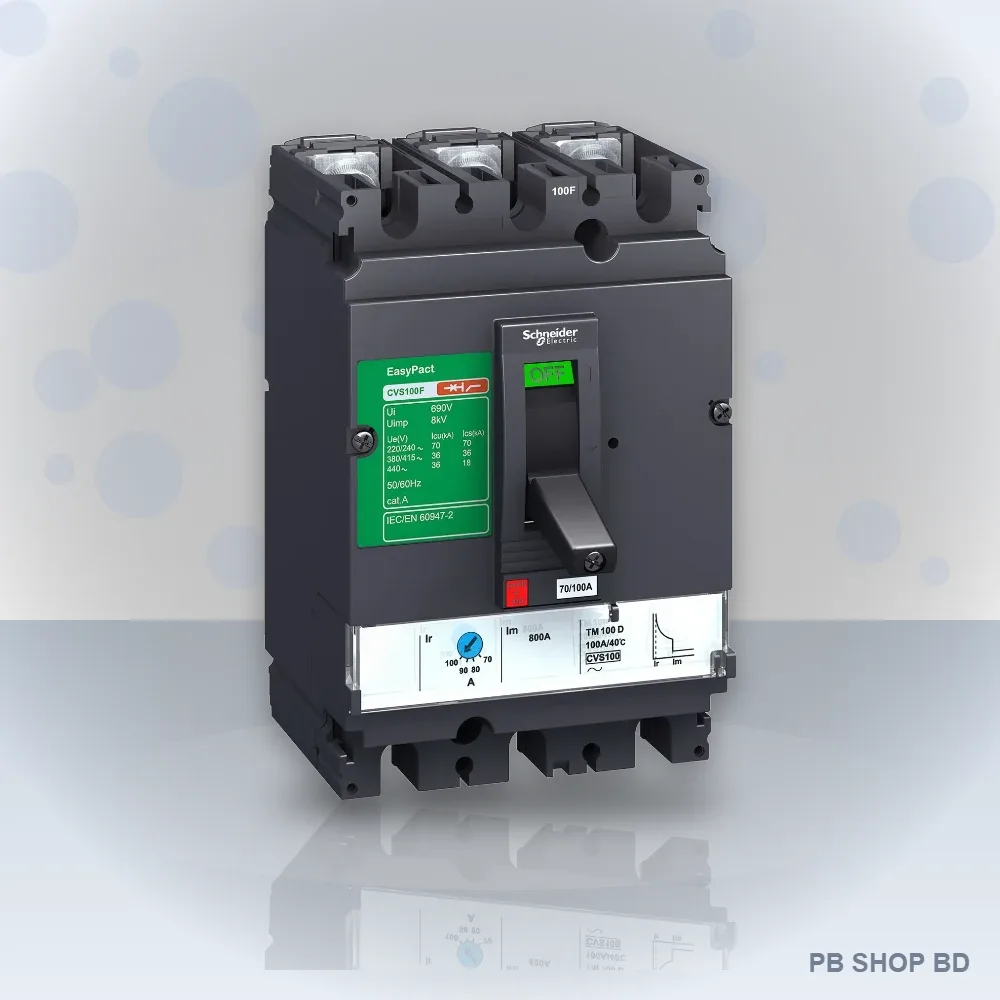

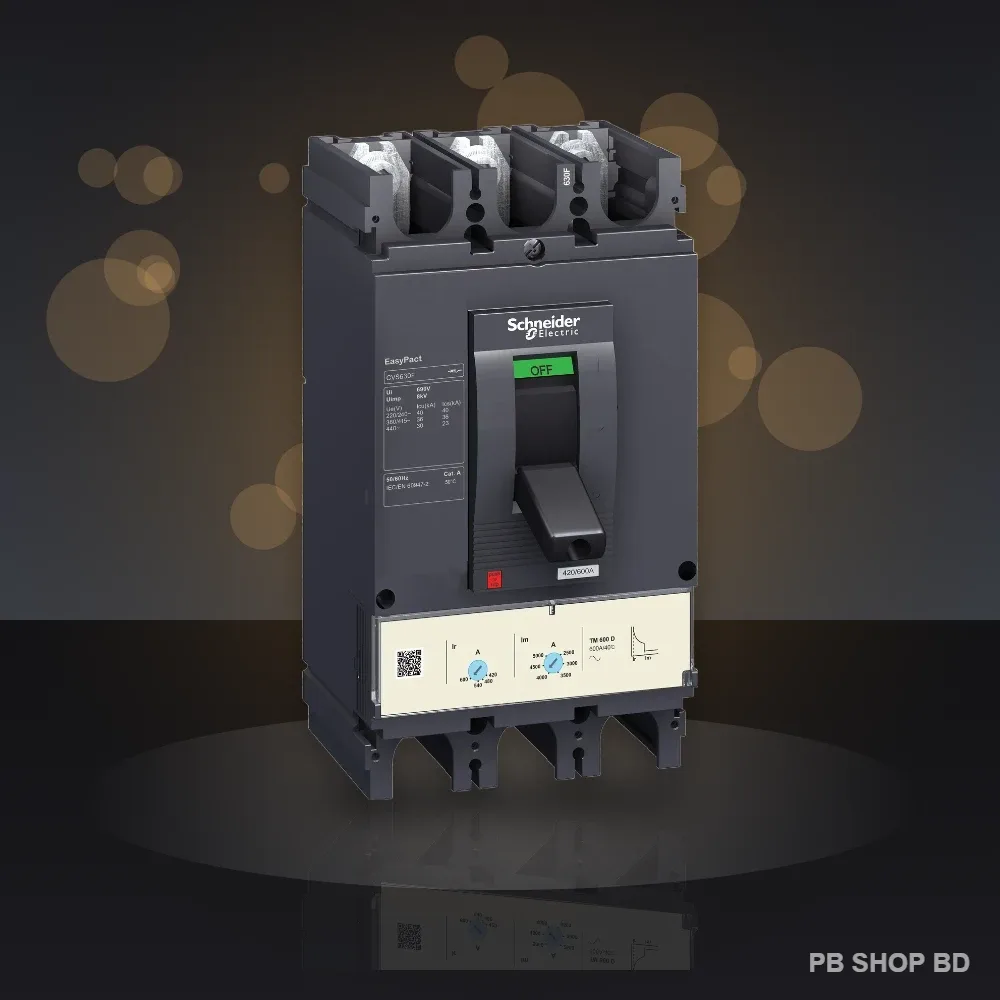

Schneider EasyPact CVS MCCB 3P (16A–600A) – Moulded Case Circuit Breaker 36kA / 50kA

Schneider EasyPact CVS MCCB 3 Pole – Reliable Protection from 16A to 600A

The Schneider Electric EasyPact CVS is a popular range of moulded case circuit breakers (MCCB) designed for everyday power distribution in commercial and industrial buildings. It protects cables, busbars and equipment from overload and short-circuit faults and gives safe isolation for maintenance. With proven Schneider quality and an affordable price, the EasyPact CVS is the smart choice for LT panels, sub-distribution boards (SDB), motor control centres and generator panels in Bangladesh.

PB SHOP BD offers the full EasyPact CVS 3P range – 16A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 200A, 250A, 400A, 500A and 600A – all 100% original Schneider Electric.

Key Features

• Genuine Schneider EasyPact CVS MCCB with clear rating and serial marking.
• 3 pole, 3 protected (3P/3d) – for 3-phase 415V distribution systems.
• TM-D thermal-magnetic trip unit – adjustable thermal (overload) setting so you can match the breaker to the actual load current.
• High breaking capacity – 36kA at 415V for 16A–250A and 50kA at 415V for 400A and above.
• Positive contact indication and push-to-trip test button for safe operation.
• Compact frame sizes – CVS100/160/250 share the same dimensions, making panel design easy.
• Wide accessory range – shunt trip (MX), under-voltage release (MN), auxiliary/alarm contacts and rotary handles.
• Complies with IEC/EN 60947-2 for low-voltage circuit breakers.

Applications

• Main incomer and outgoing feeders of LT / PDB / SDB panels
• Factories, garments, textile and RMG industries
• Commercial buildings, shopping malls, hospitals and apartments
• Generator output and ATS/changeover panels
• Motor feeders, pump houses and HVAC plants
• Solar AC combiner and inverter output panels

How to Select the Right MCCB Rating

Choose an MCCB rated slightly above the maximum continuous load current, and make sure the cable can carry that current. Typical guide for 415V three-phase loads: 10kW ≈ 16–25A, 20kW ≈ 40A, 30kW ≈ 63A, 50kW ≈ 100A, 75kW ≈ 125–160A, 100kW ≈ 200A, 125kW ≈ 250A, 200kW ≈ 400A and 300kW+ ≈ 500–600A. Also check the prospective short-circuit current at the installation point – choose 36kA or 50kA accordingly. Our team can help you choose the correct breaker.

EasyPact CVS vs Compact NSX

EasyPact CVS is the value range for standard distribution with reliable TM-D protection. Compact NSX is the premium range with more trip-unit options (Micrologic electronic), higher performance and advanced metering. For most building and factory panels, EasyPact CVS gives excellent protection at a lower cost.

Why Buy from PB SHOP BD?

• 100% original Schneider Electric MCCB
• Best Schneider MCCB price in Bangladesh
• 1 year warranty and technical support
• Fast delivery all over Bangladesh, cash on delivery available

FAQ

Q: What does 3P/3d mean?
A: 3 poles with 3 protected (detected) poles – all three phases have overload and short-circuit protection.

Q: Is the overload setting adjustable?
A: Yes, the TM-D trip unit lets you adjust the thermal setting (Ir) typically from 0.7 to 1 × In.

Q: Can I add a shunt trip or auxiliary contact?
A: Yes, EasyPact CVS supports Schneider plug-in accessories such as MX shunt trip, MN UV release, OF/SD auxiliary contacts.

Note: MCCB installation must be done by a qualified electrician with proper cable lugs and torque.
