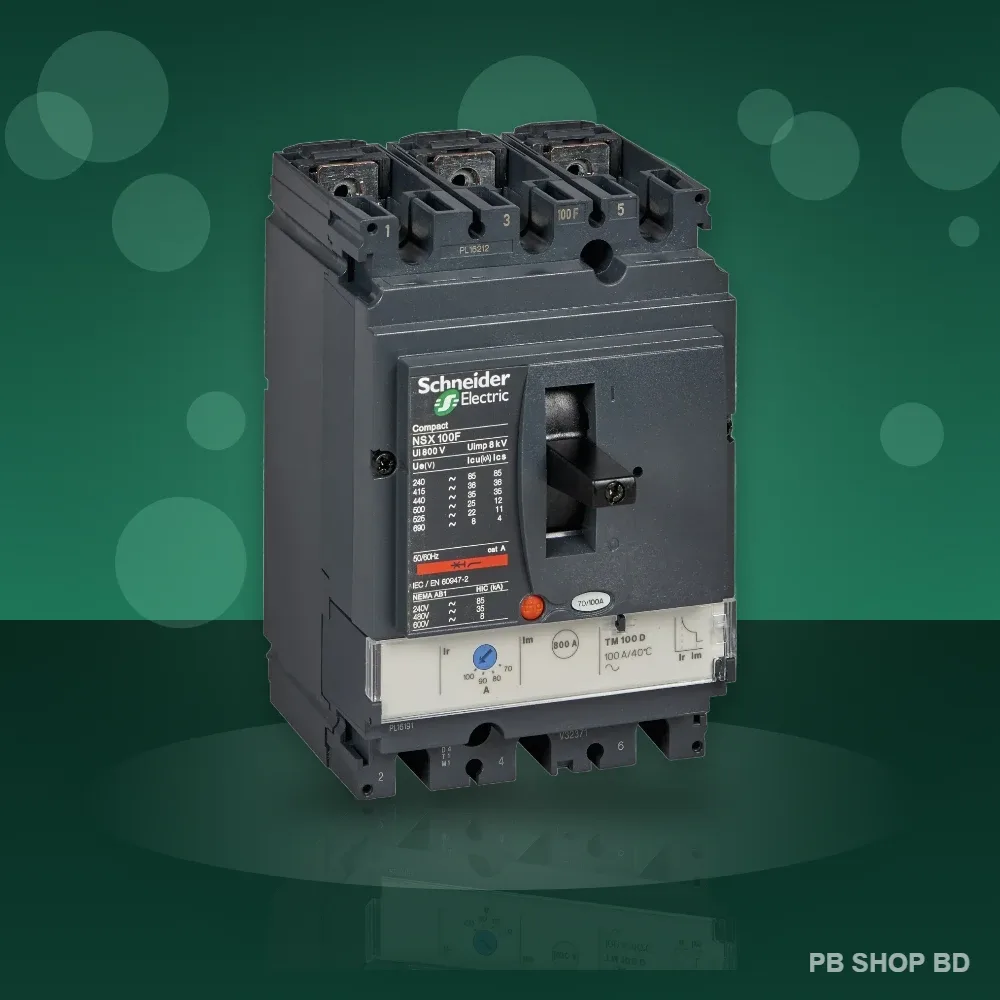

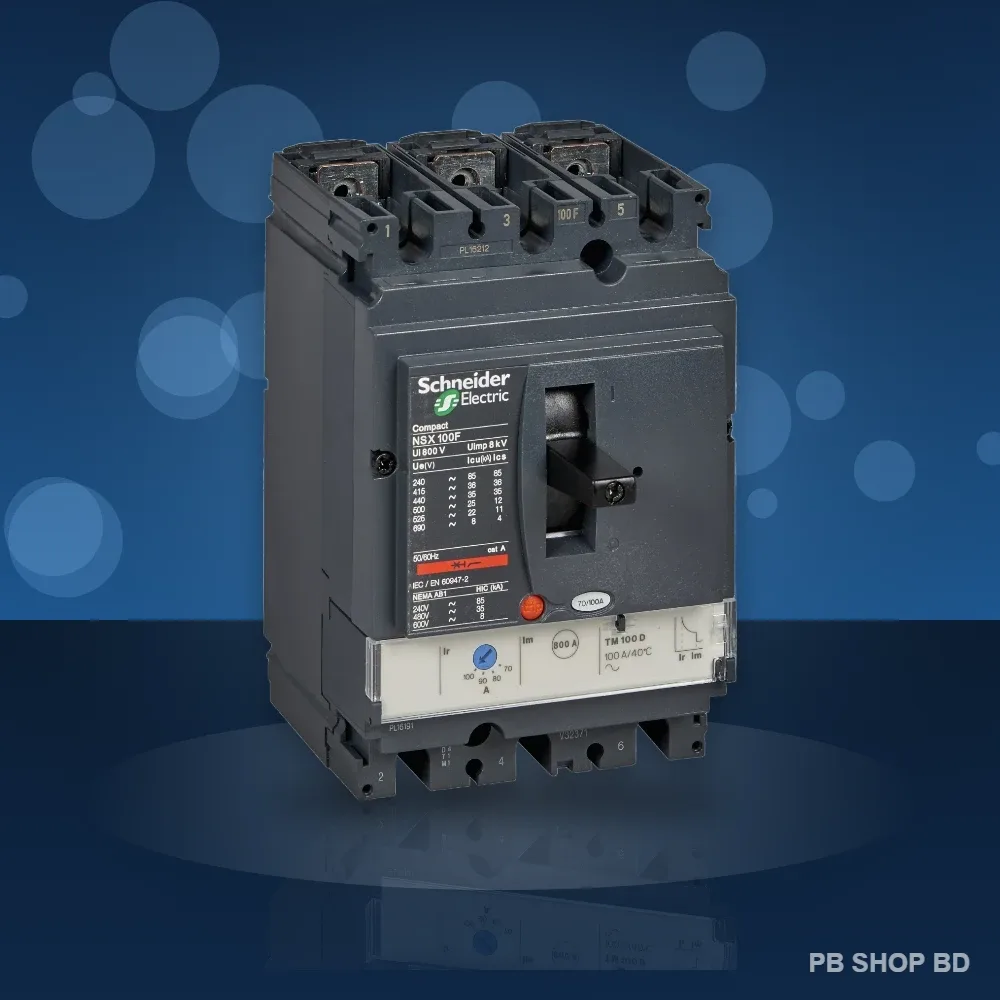

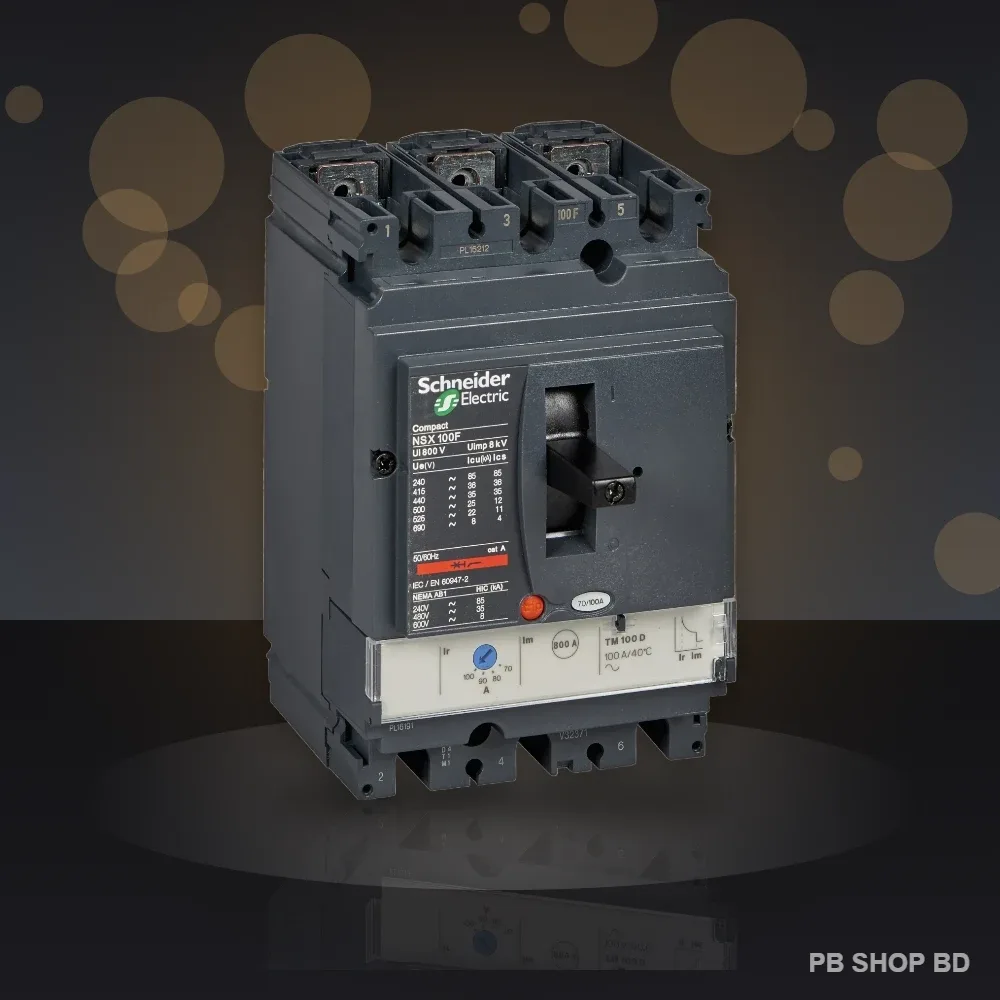

Schneider Compact NSX MCCB 3P (16A–1250A) – Premium Moulded Case Circuit Breaker

Schneider Compact NSX MCCB 3 Pole – Premium Protection for Critical Power (16A to 1250A)

The Schneider Electric Compact NSX is the world's benchmark moulded case circuit breaker (MCCB) range, trusted in power plants, factories, hospitals, data centres and high-rise buildings. Using Schneider's unique roto-active breaking technology, the Compact NSX limits short-circuit current extremely fast – protecting cables, busbars and downstream devices far better than ordinary breakers.

PB SHOP BD brings you the original Schneider Compact NSX MCCB in Bangladesh in all popular ratings: 16A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 200A, 250A, 400A and 630A, plus large frame 800A, 1000A and 1250A (Compact NS) for main incomers.

Key Features of Compact NSX

• 100% original Schneider Electric – premium quality with global certification.
• 3 pole, 3 protected for three-phase 415V systems.
• TM-D thermal-magnetic trip unit with adjustable thermal (Ir) setting; upgradeable to Micrologic electronic trip units for advanced protection and metering.
• High breaking capacity – 36kA at 415V up to 250A, 50kA at 415V from 400A.
• Roto-active double-break contacts – excellent current limiting and selectivity (discrimination).
• Positive contact indication, push-to-trip button and sealable settings.
• Huge accessory range – MX shunt trip, MN under-voltage release, OF/SD auxiliary contacts, motor mechanism, extended rotary handle.
• Long life & reliability – designed for demanding industrial environments.

Applications

• Main incomer and bus-coupler of LT panels and PDBs
• Industrial plants, garments, textile, steel and cement factories
• Hospitals, data centres, banks and commercial towers
• Generator, ATS and synchronising panels
• Motor control centres (MCC) and pump stations
• Substation outgoing feeders and solar plant AC panels

MCCB Size Selection Guide

Select the MCCB rating a little above the maximum load current and within the cable capacity. Typical 415V three-phase guide: 16–25A ≈ 7–10kW, 63A ≈ 30kW, 100A ≈ 50kW, 160A ≈ 80kW, 250A ≈ 125kW, 400A ≈ 200kW, 630A ≈ 315kW, 800A–1250A ≈ 400–630kVA transformer/generator incomers. Check the fault level at site and choose 36kA or 50kA accordingly.

Compact NSX vs EasyPact CVS

Both are Schneider MCCBs. Compact NSX is the premium range with better current limiting, wider trip-unit choices (Micrologic 2.2, 5.2, 6.2 with metering) and higher performance – recommended for main incomers and critical loads. EasyPact CVS is the value range for standard distribution.

Why Buy from PB SHOP BD?

• Genuine Schneider Electric Compact NSX
• Best Schneider MCCB price in Bangladesh
• 1 year warranty and engineer support
• Delivery all over Bangladesh, cash on delivery available

FAQ

Q: What is NSX100F?
A: NSX100 is the 100A frame and "F" is the 36kA breaking-capacity version. The frame accepts trip units from 16A to 100A.

Q: Can I fit a motor operator or shunt trip?
A: Yes. Compact NSX supports MX/MN releases, auxiliary contacts and motor mechanisms for remote control.

Q: Which rating do I need for a 250kVA transformer?
A: A 250kVA transformer at 415V has about 350A full-load current, so a 400A Compact NSX is commonly used.

Note: MCCB installation must be carried out by a qualified electrician.
