28% OFF Schneider Acti9 xC60 MCB Single Pole 10kA (2A–63A) – 1P Miniature Circuit Breaker
Schneider Electric Circuit Breakers Model: SCH-ACTI9-XC60-1P

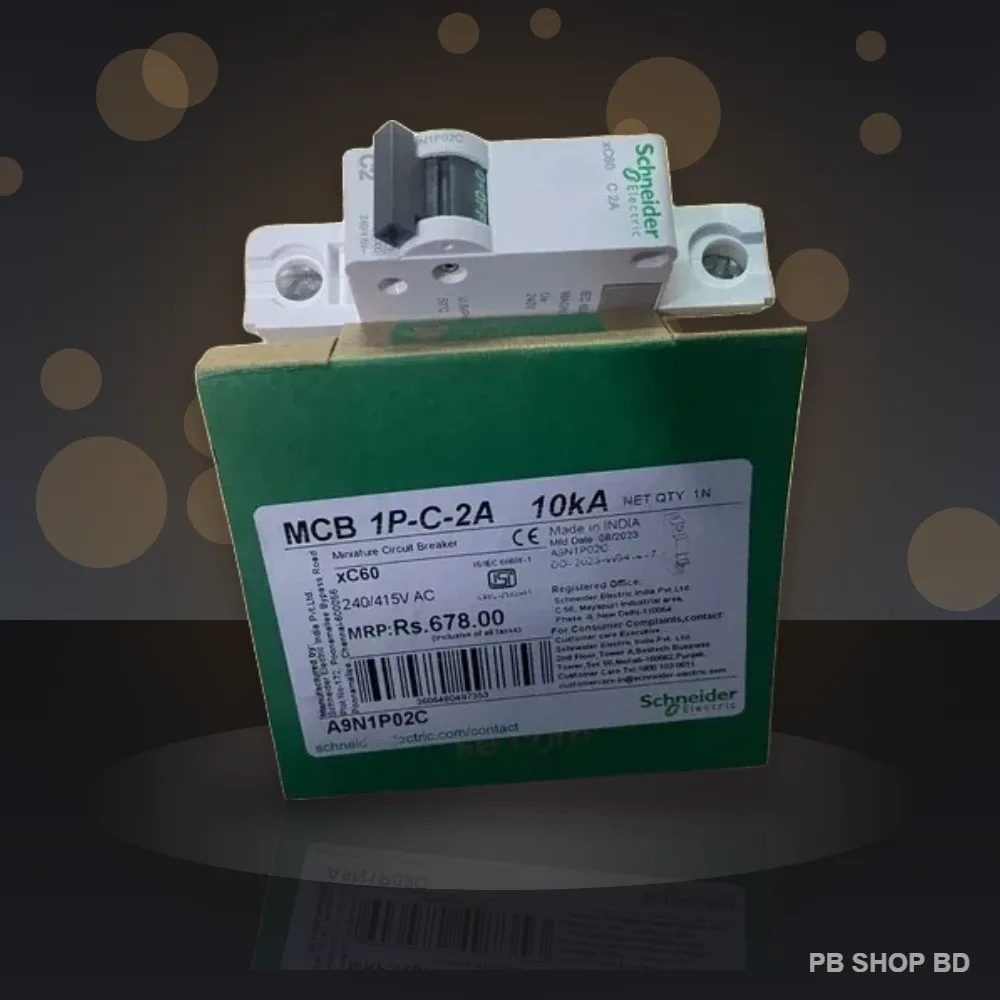

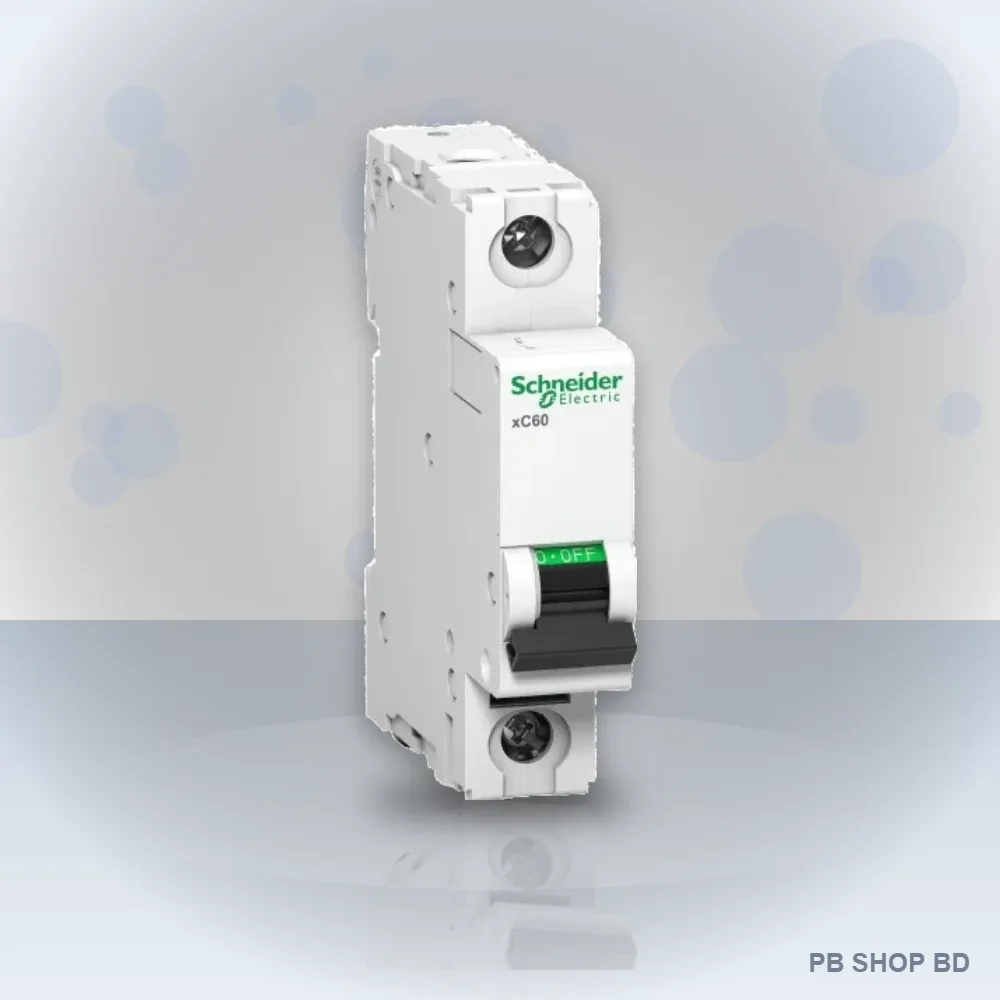

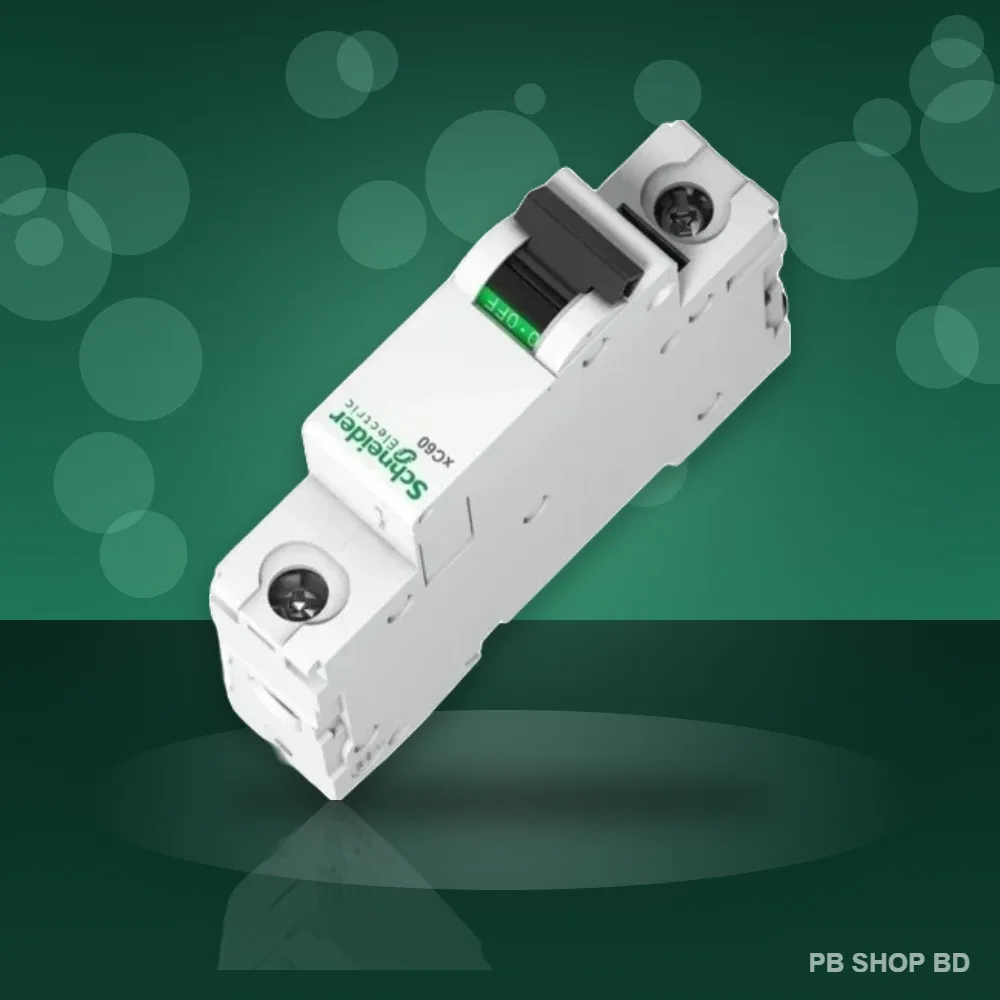

Schneider Acti9 xC60 MCB Single Pole 10kA (2A–63A) – 1P Miniature Circuit Breaker

৳525 ৳725 Save ৳200 Price range ৳400 – ৳788 depending on option
● In Stock 🚚 Delivery in 1–3 days 💵 Cash on Delivery

⚡ Important Functions

  • Original Schneider Electric Acti9 xC60 MCB – single pole (SP/1P)
  • 10kA breaking capacity – premium safety for home wiring
  • Ratings 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A & 63A
  • C-curve – suitable for lights, fans, sockets, AC & appliances
  • Compact 1-module design for any DIN-rail DB box
  • IEC/EN 60898-1 certified, 1 year warranty
🛡️
1 Year Warranty Replacement for manufacturing defects within 1 month of delivery. Physical damage, burn marks, water damage or wrong wiring are not covered. Keep your invoice. Read warranty terms & conditions →
Order on WhatsApp 📞 Call +8809658473941
🚚 Inside Dhaka৳60 · 1–2 days
🚚 Outside Dhaka৳110 · 2–3 days
🔁 Easy Return3-day return for wrong / defective item policy
✅ 100% OriginalGenuine product, tested before dispatch

Schneider Acti9 xC60 MCB Single Pole 10kA – The Smart Choice for Every Home DB

The Schneider Electric Acti9 xC60 single pole MCB is the most widely used miniature circuit breaker for homes, flats, shops and offices. Each breaker protects one circuit – lights, fans, sockets, an AC or a kitchen appliance – and trips instantly on overload or short circuit to prevent cable overheating and electrical fire.

Unlike low-cost breakers, the Schneider Acti9 offers a 10kA breaking capacity, accurate tripping and long life, so you get real protection for your family and property. PB SHOP BD sells the original Schneider SP MCB in Bangladesh in 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A and 63A at the best price.

Schneider single pole MCB 10kA price in Bangladesh

Key Features

  • Genuine Schneider Electric Acti9 xC60 MCB.
  • Single pole (1P) – 18mm compact module, fits any standard DB box.
  • 10kA breaking capacity – superior safety compared to 3kA–6kA breakers.
  • C-curve tripping – suitable for lighting, sockets, motors and AC loads.
  • Thermal-magnetic protection – overload and short circuit.
  • Clear ON/OFF indication and padlockable toggle.
  • Strong, finger-safe IP20 terminals for reliable connections.

Schneider Acti9 xC60 MCB 1P C curve

Which Rating Do I Need?

  • 2A / 4A – control circuits, doorbell, CCTV, small electronics
  • 6A – lighting circuits
  • 10A – light & fan circuits
  • 16A – socket circuits, fridge, 1-ton AC
  • 20A / 25A – 1.5–2 ton AC, geyser, oven
  • 32A / 40A / 63A – sub-main or heavy-load circuits

Always match the MCB to the cable: 1.5mm² ≈ 10A, 2.5mm² ≈ 16–20A, 4mm² ≈ 25–32A, 6mm² ≈ 40A.

Schneider MCB home distribution board Bangladesh

Why Buy from PB SHOP BD?

  • 100% original Schneider Electric MCB
  • Best Schneider MCB price in Bangladesh
  • 1 year warranty
  • Fast delivery everywhere in Bangladesh, cash on delivery

FAQ

Q: Is a 10kA MCB better than a 6kA MCB?
A: Yes. 10kA can safely interrupt higher fault currents, giving more safety in multi-storey buildings.

Q: Can I use a single pole MCB for an AC?
A: Yes for small ACs, but a 2 pole MCB is recommended so the neutral is also disconnected.

Q: Do you deliver outside Dhaka?
A: Yes, PB SHOP BD delivers all over Bangladesh.

Note: Installation should be done by a qualified electrician.

SCH-ACTI9-XC60-1P Specifications

BrandSchneider Electric
RangeActi9 xC60
Product TypeMiniature Circuit Breaker (MCB)
Number of Poles1P (Single Pole / SP)
Rated Current2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A
Tripping CurveC
Breaking Capacity10kA (IEC/EN 60898-1)
Rated Voltage230/240V AC, 50/60Hz
Module Width1 module (18mm)
Mounting35mm DIN rail
ProtectionOverload & short circuit
StandardsIEC/EN 60898-1, IEC/EN 60947-2
Warranty1 Year

1 Year Warranty

  • Free replacement if the product has a manufacturing defect within 1 month from the delivery date.
  • The product must be returned with its box, accessories and invoice / order number.
  • Not covered: physical damage, broken casing, burn marks, water/moisture damage, lightning or very high voltage, wrong wiring or installation, and tampering.
  • Please have electrical products installed by a qualified electrician.
  • Wrong or damaged item on delivery? Tell us within 3 days for a free exchange.
