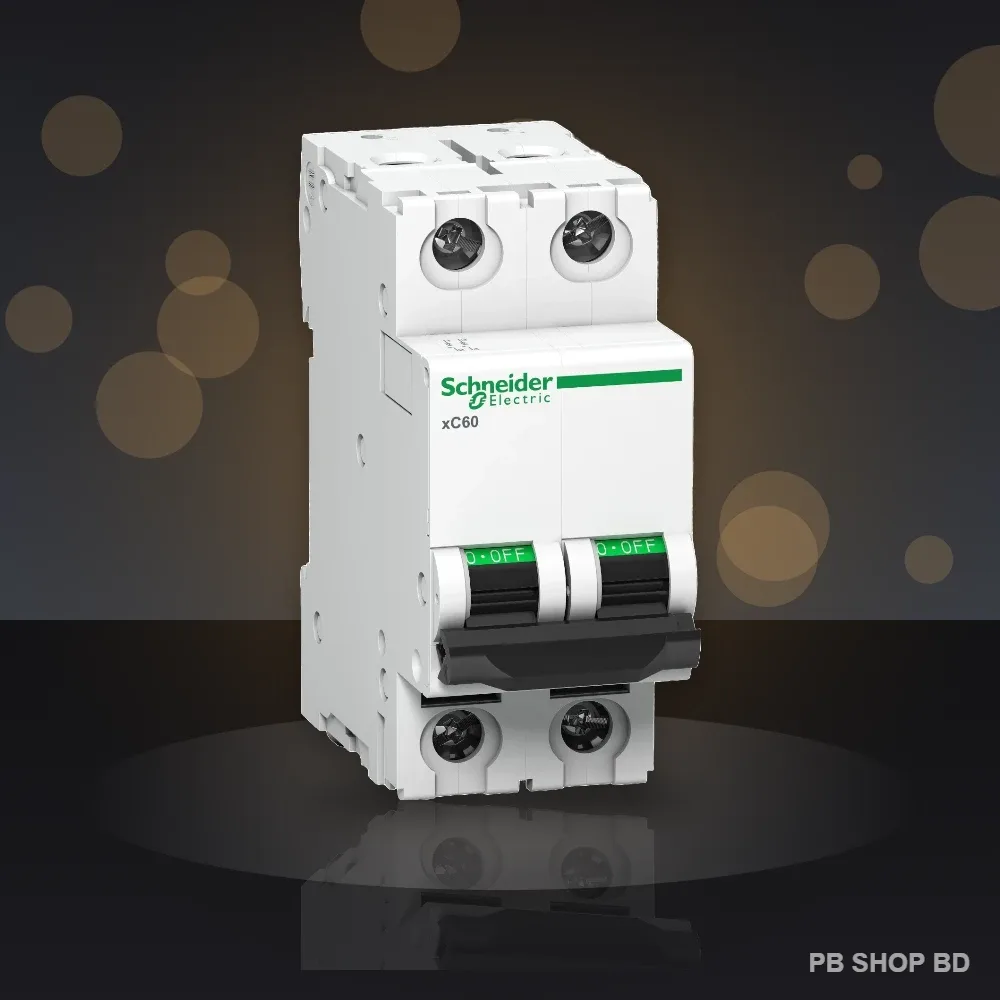

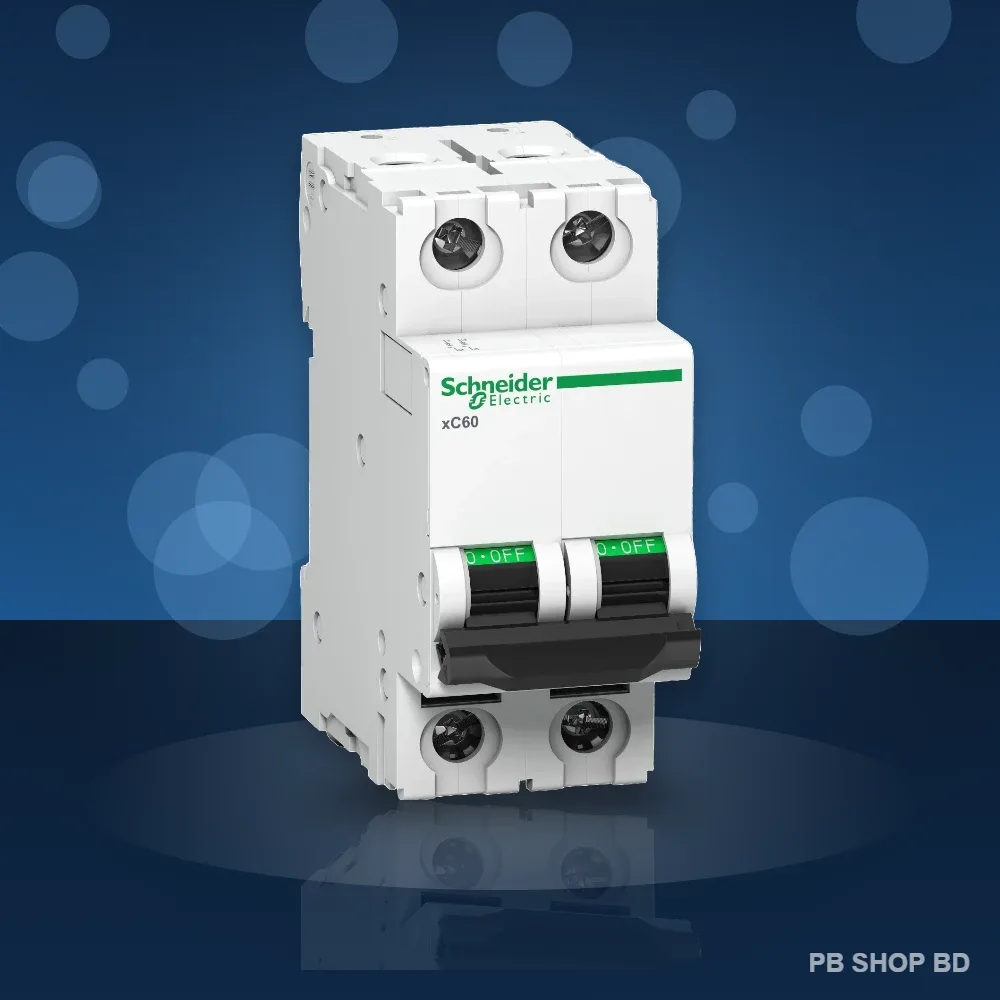

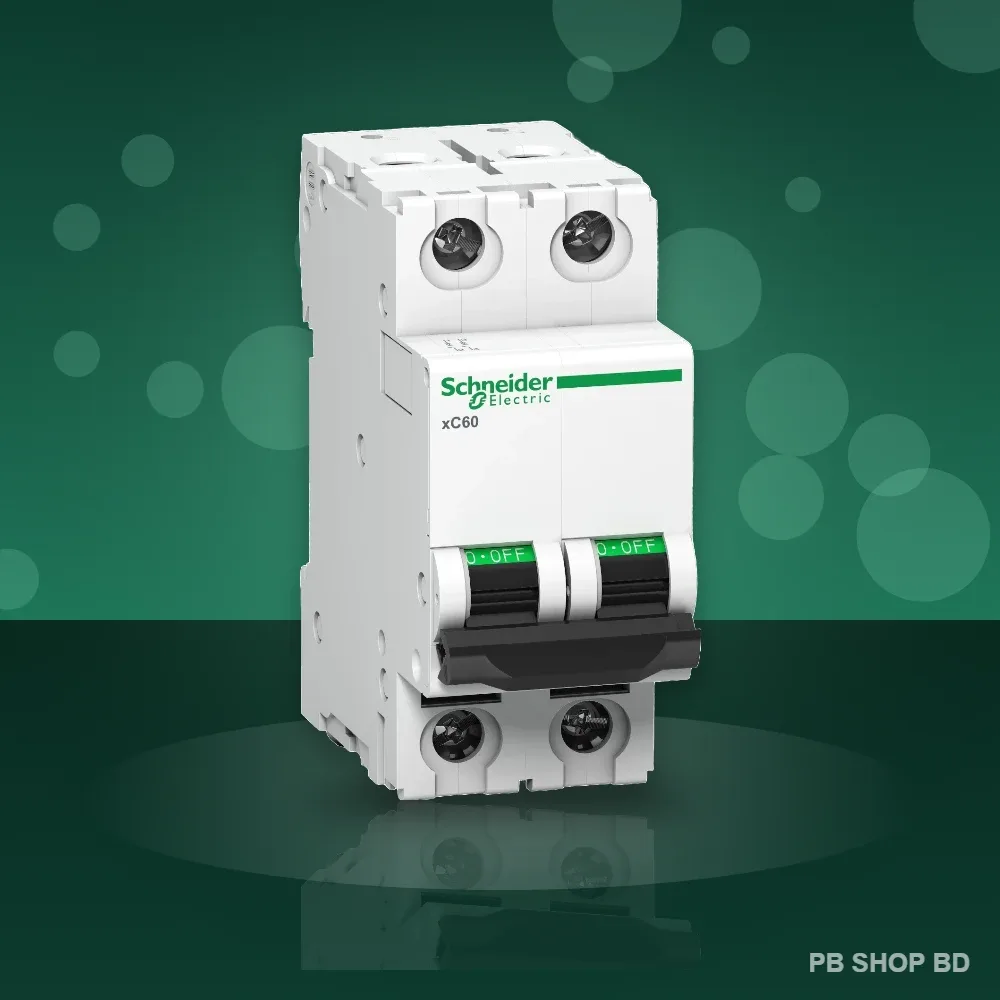

Schneider Acti9 xC60 MCB 2 Pole 10kA (2A–63A) – Double Pole Miniature Circuit Breaker

Schneider Acti9 xC60 MCB 2 Pole 10kA – Complete Protection for Single Phase Circuits

The Schneider Electric Acti9 xC60 2 pole MCB is a premium double pole miniature circuit breaker that cuts off both the phase and the neutral at the same time. That gives complete isolation when you switch off – making it the best choice as the main switch of a home distribution board, or as a dedicated breaker for an air conditioner, geyser, water pump or IPS.

With 10kA breaking capacity and genuine Schneider quality, it trips accurately on overload and short circuit and protects your wiring from overheating and fire. PB SHOP BD offers the original Schneider DP MCB in Bangladesh in 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A and 63A.

Key Features

• 100% original Schneider Electric Acti9 MCB.
• Double pole (DP) – switches phase and neutral together for full isolation.
• 10kA breaking capacity – safer than ordinary 4.5kA / 6kA breakers, ideal for apartment buildings.
• C-curve – no nuisance tripping when AC compressors or motors start.
• Accurate thermal-magnetic protection against overload and short circuit.
• Clear ON/OFF indication, padlockable toggle and IP20 finger-safe terminals.
• Compact 2-module size for standard DIN-rail DB boxes.

Popular Uses

• Main switch of single-phase home DB (32A / 40A / 63A)
• Split AC: 1–1.5 ton → 16A or 20A, 2 ton → 25A or 32A
• Water heater/geyser, oven and induction cooker circuits
• Water pump, IPS / inverter and solar inverter output
• Shops, offices, clinics and small workshops

How to Choose the Rating

Match the MCB to the load and the cable: 6A for lighting, 10A for light/fan circuits, 16A for socket circuits and 1-ton AC, 20–25A for 1.5–2 ton AC or geyser, 32A for 2-ton AC or a small flat main, 40–63A as main switch for a full flat/house. Cable guide: 1.5mm² ≈ 10A, 2.5mm² ≈ 16–20A, 4mm² ≈ 25–32A, 6mm² ≈ 40A, 10–16mm² ≈ 63A.

Why Buy from PB SHOP BD?

• Genuine Schneider Electric products
• Best Schneider 2 pole MCB price in Bangladesh
• 1 year warranty
• Fast delivery all over Bangladesh with cash on delivery

FAQ

Q: Why use a 2 pole MCB instead of 1 pole?
A: A 2 pole MCB disconnects the neutral too, so the circuit is fully isolated – safer for maintenance and required for main switches and ACs.

Q: Which MCB is best for a 1.5 ton AC?
A: A 20A (or 25A) 2 pole C-curve MCB with 2.5–4mm² cable is recommended.

Q: Is this MCB original?
A: Yes, PB SHOP BD sells only genuine Schneider Electric products with warranty.

Note: Installation should be done by a qualified electrician.
