TAXNELE KWS-302WF WiFi Smart Energy Meter & Voltage Protector in Bangladesh

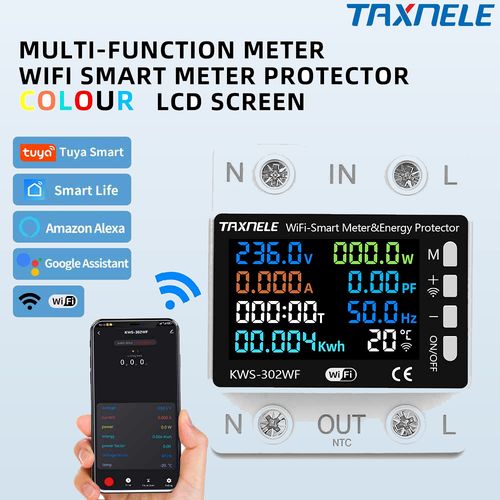

The TAXNELE KWS-302WF is a multifunctional 8-in-1 WiFi Smart Energy Meter and Electrical Protection Device designed for monitoring and controlling single-phase electrical loads.

Its colorful LCD display provides real-time information about voltage, current, power, electrical energy, timing, temperature, frequency and power factor in one convenient display.

The KWS-302WF also features WiFi connectivity, allowing users to monitor and control the device remotely through the Tuya Smart or Smart Life app.

8-in-1 Real-Time Display

The KWS-302WF displays eight important electrical parameters:

1. Voltage (V)
2. Current (A)
3. Power (W/kW)
4. Timing (Hour)
5. Electrical Energy (kWh)
6. Temperature (°C)
7. Frequency (Hz)
8. Power Factor (PF)

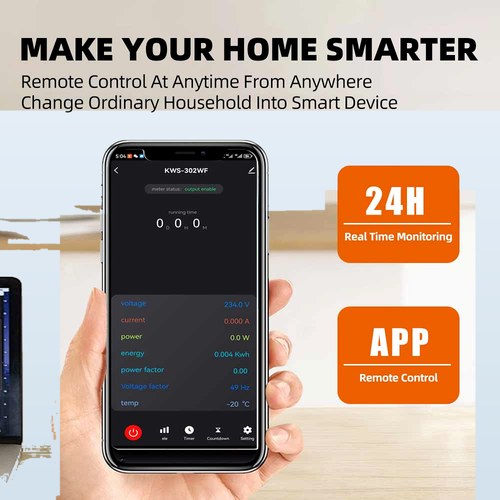

WiFi Remote Control

The KWS-302WF WiFi Energy Meter supports smartphone remote control through compatible smart-home applications.

Connect the device to the Tuya Smart or Smart Life app to monitor electrical parameters and control the connected load remotely.

This allows you to control the device from virtually anywhere with an internet connection.

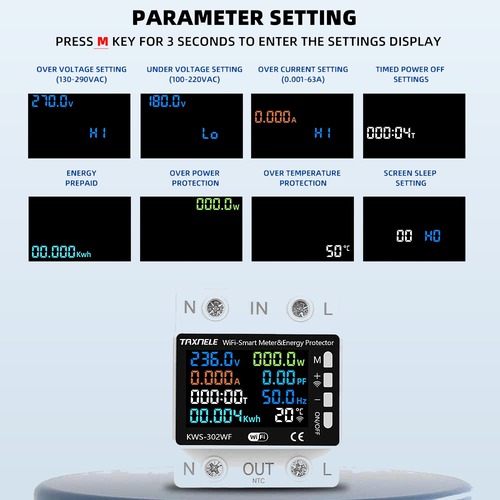

Multiple Protection Functions

The KWS-302WF provides several adjustable electrical protection functions, including:

• Over-voltage protection
• Under-voltage protection
• Over-current protection
• Over-power protection
• Over-temperature protection

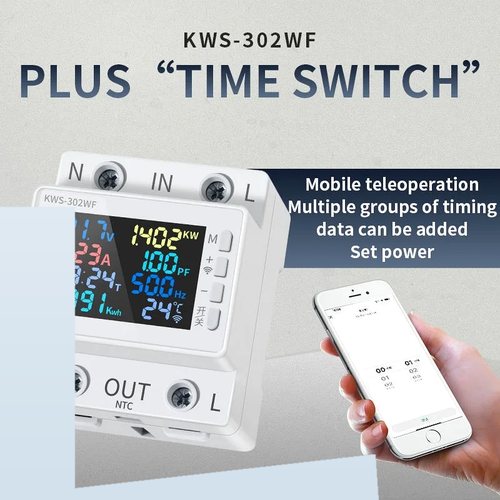

• Timed power-off
• Power failure memory
• Screen sleep/hibernation setting

These functions make the KWS-302WF suitable for protecting and monitoring various single-phase electrical appliances and circuits.

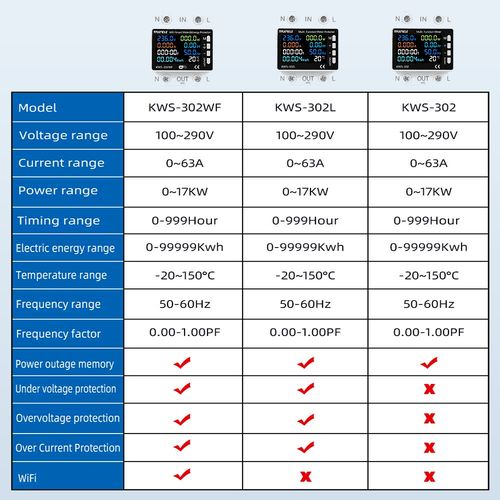

Wide Measurement Range

The device supports:

• Voltage: 100–290V AC
• Current: 0–63A
• Power: 0–17kW
• Energy: 0–99,999 kWh
• Timing: 0–999 hours
• Temperature: -20°C to 150°C
• Frequency: 50–60Hz
• Power Factor: 0.00–1.00 PF

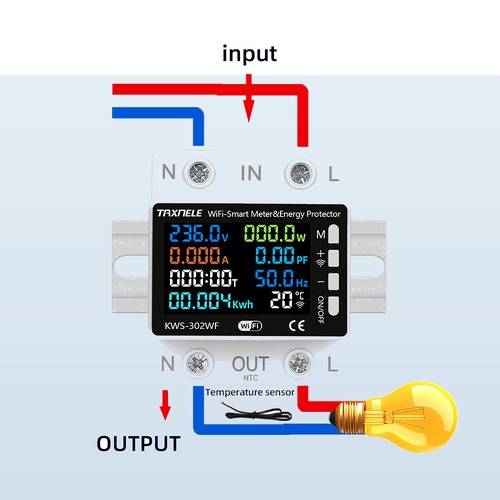

Compact DIN-Rail Design

The KWS-302WF has a compact design suitable for installation in electrical distribution boards and control panels. Its approximately 66 × 66 × 82 mm body makes it convenient for space-conscious installations.

 Key Features

• ✅ 8-in-1 multifunctional energy meter
• ✅ Colorful LCD display
• ✅ WiFi remote control
• ✅ Tuya Smart compatible
• ✅ Smart Life compatible
• ✅ Real-time voltage monitoring
• ✅ Real-time current monitoring
• ✅ Power measurement up to 17kW
• ✅ Electrical energy measurement
• ✅ Frequency measurement
• ✅ Power factor measurement
• ✅ Temperature monitoring
• ✅ Adjustable over-voltage protection
• ✅ Adjustable under-voltage protection
• ✅ Adjustable over-current protection
• ✅ Over-power protection
• ✅ Over-temperature protection
• ✅ Timed power-off function
• ✅ Power failure memory
• ✅ Screen sleep function
• ✅ 100–290V AC measurement range
• ✅ Up to 63A current measurement
• ✅ Compact DIN-rail installation

Technical Specifications

 What’s in the Box

• 1 × TAXNELE KWS-302WF WiFi Smart Energy Meter
• 1 × Temperature Sensor
• 1 × User/Installation documentation (if supplied by manufacturer)

Note: Please verify the exact package contents with your supplier before publishing this section.

 Applications

The TAXNELE KWS-302WF can be used for:

• Home electrical monitoring
• Electrical distribution boards
• Single-phase power monitoring
• Appliance energy monitoring
• Smart home applications
• Workshop electrical systems
• Small commercial electrical systems
• Electrical load monitoring
• Voltage protection
• Current protection
• Energy consumption monitoring
